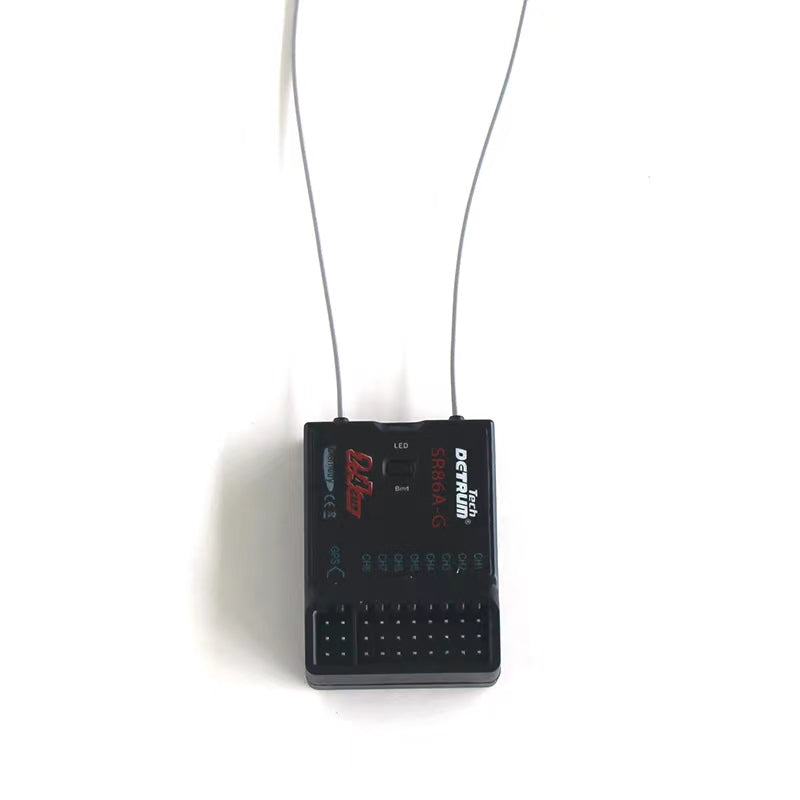

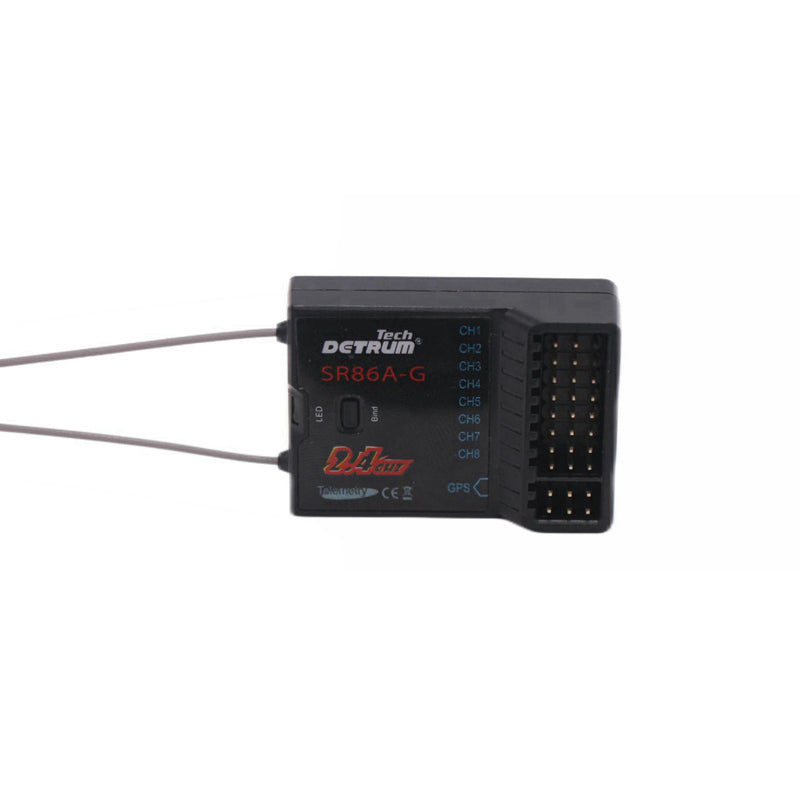

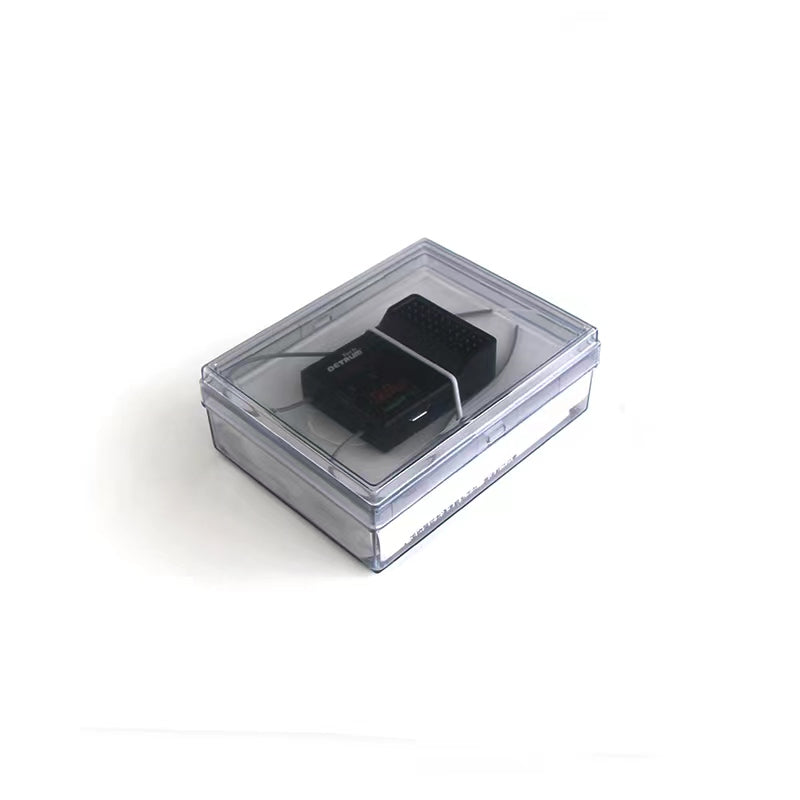

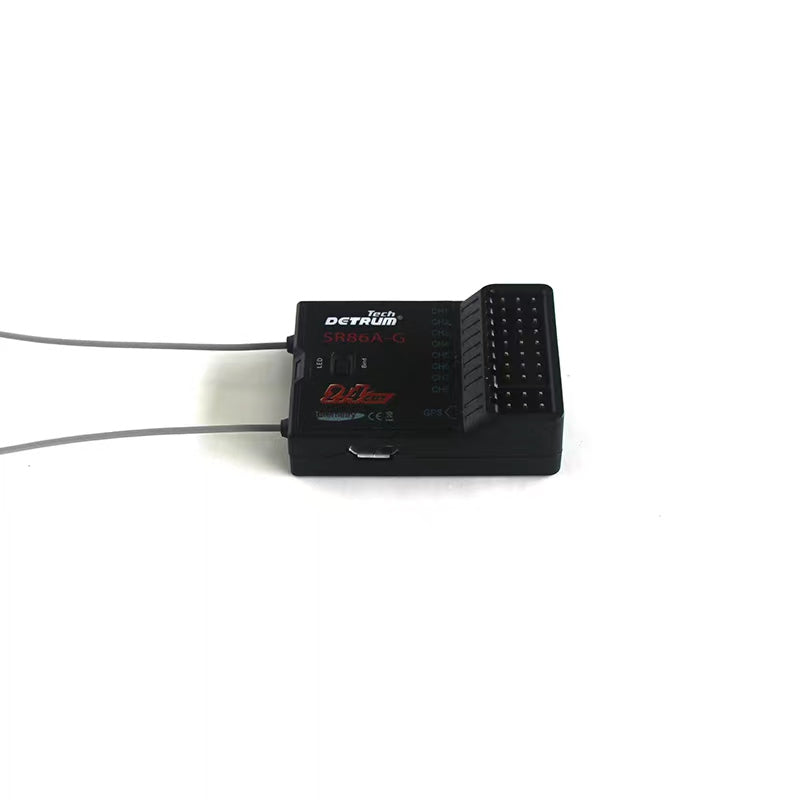

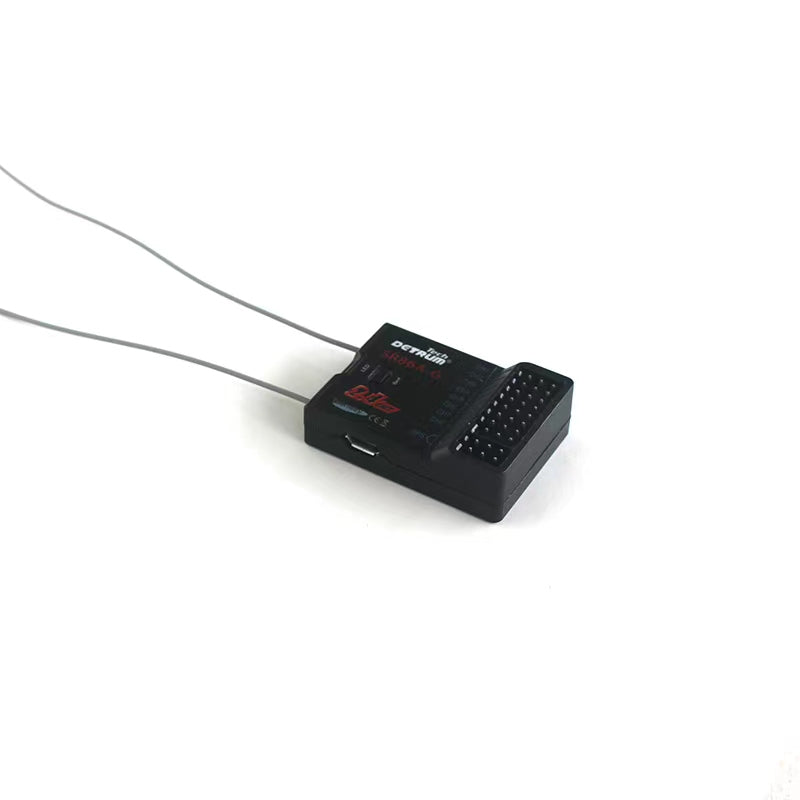

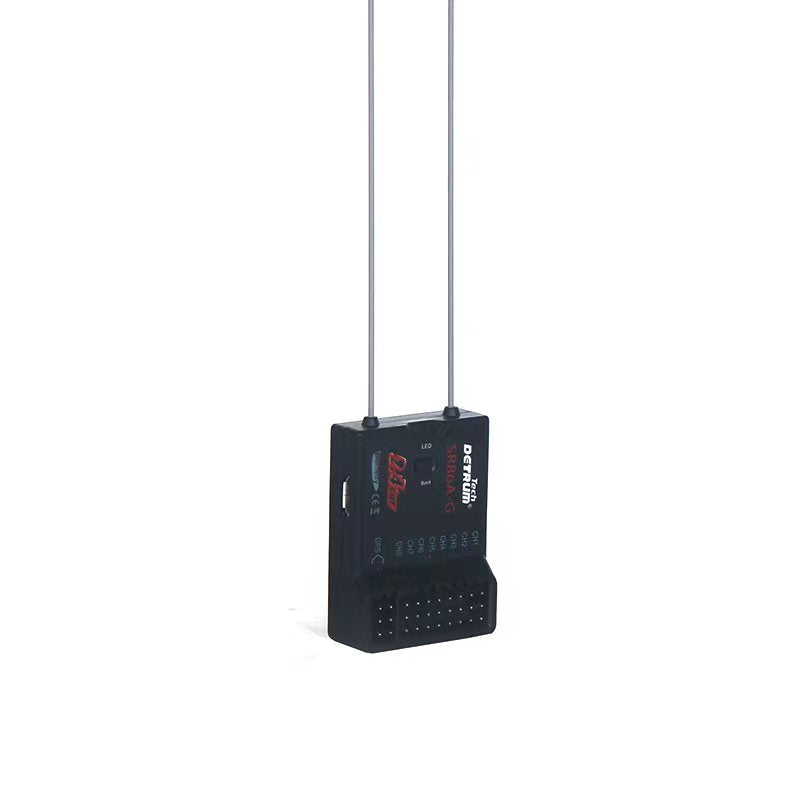

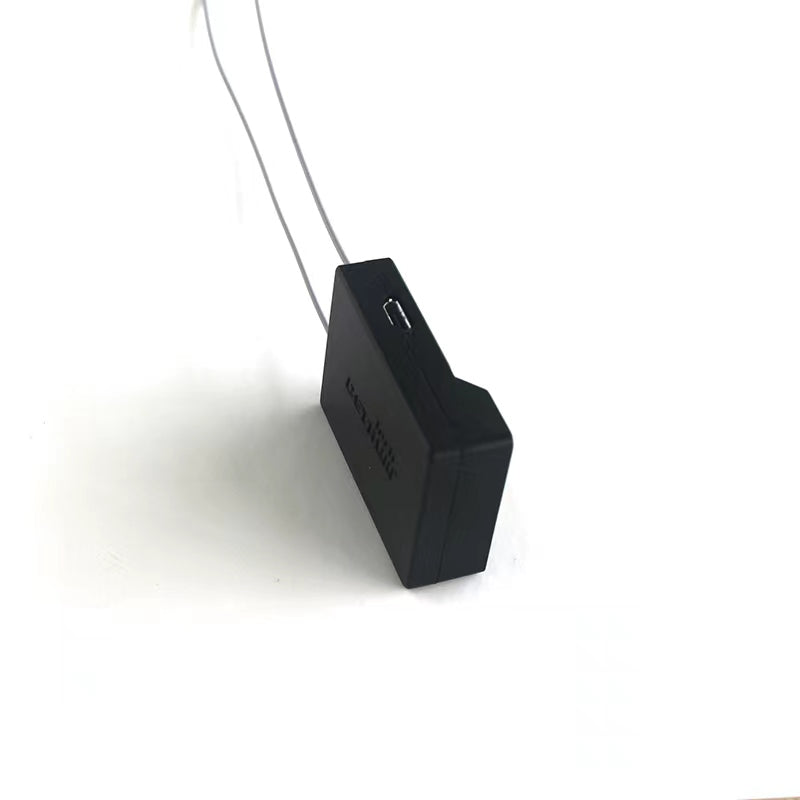

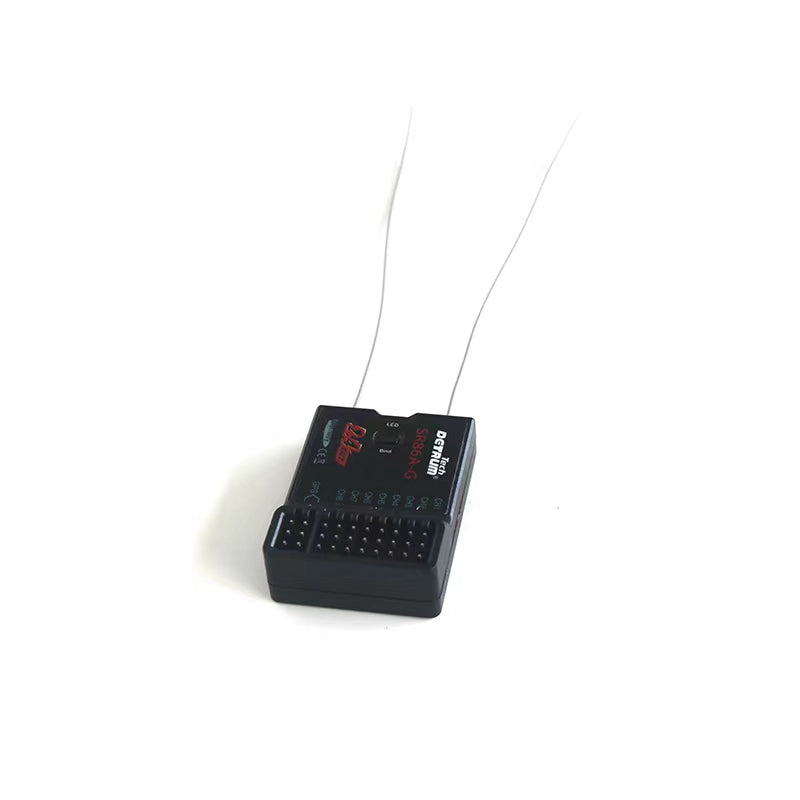

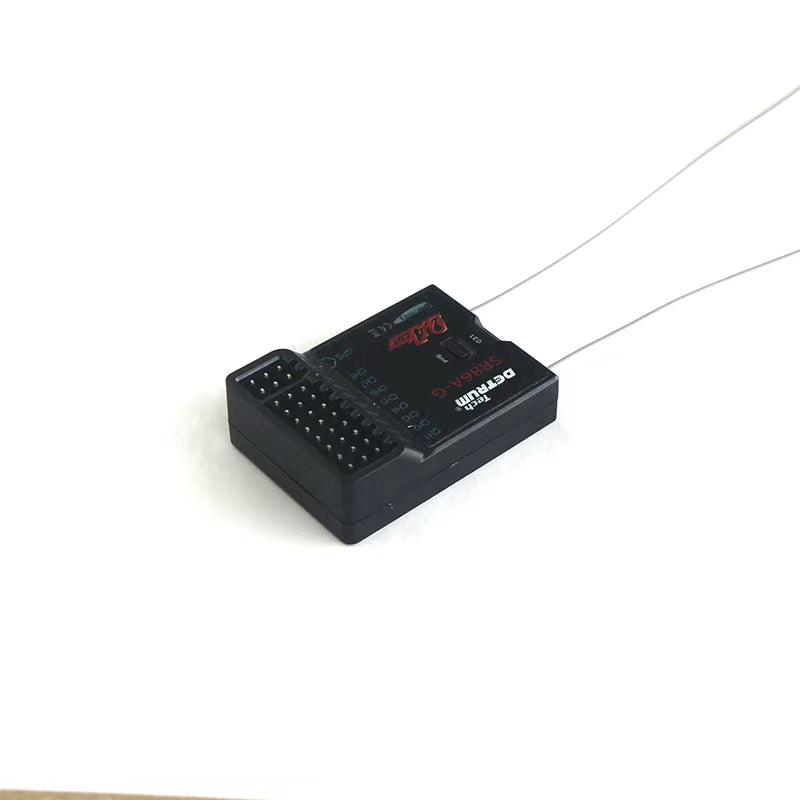

Detrum SR86A-G 8-Channel Autopilot Telemetry Receiver

DetrumSKU: DTM-R008

Preis:
Sonderpreis$89.99 USD
Lagerbestand:
Auf Lager

Beschreibung

Detrum SR86A-G 8-Channel Autopilot Telemetry Receiver - DTM-R008

The Detrum SR86A-G Autopilot Telemetry Receiver is a high-quality device that provides accurate and reliable data for your RC plane. The telemetry receiver also features an autopilot function that can assist you in flying your plane, making it a great tool for beginners and experienced pilots. The device is easy to install and operate, and its compact size makes it perfect for use in various RC planes. Overall, the Detrum SR86A-G Autopilot Telemetry Receiver is a must-have for anyone looking to take their RC flying to the next level.

Detrum SR86A G GPS Autopilot Telemetry Receiver Introduction

Detrum SR86A G GPS Autopilot Telemetry Receiver Details

Detrum SR86A G GPS Autopilot Telemetry Receiver Return Home

Detrum SR86A G GPS Autopilot Telemetry Receiver Main Control IC

Detrum SR86A G GPS Autopilot Telemetry Receiver Control Algorithm

Detrum SR86A G GPS Autopilot Telemetry Receiver High Sensitivity

Features

Return Home - Adding path control based on the auto-recovery mode allows the airplane to automatically plan the path and leads the airplane back to the starting point. Height is controllable during the return flight. You can exit the return mode at any time by waving the return switch, supporting the one-button and signal loss returns.

Main Control IC - 32-bit high-performance ARM core processor, 6-axis MEMS gyro chipset.

Control Algorithm - Original airplane attitude stabilization algorithm and control algorithm. Support normal wing, delta wing, V-tail airplanes, and 3D planes.

Flight Mode - Four modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance). You can switch between different modes with the toggle switch.

Adjusting the Gain - Set the gain and other programmable items with matched transmitter.

High Sensitivity - SR86A adopts 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping (FHSS) technologies, having high receiving sensitivity and strong anti-interference capability.

Diversity Antenna - Using a diversity antenna, combined with the signal detection and switching algorithm, makes the receiving signal stable and reliable.

Unique ID Code - Once the binding is made, the ID code is stored in the receiver, and no further binding is necessary after restarting the receiver.

Output Signals - 8-channel PWM.

Specifications

Channels: 8-channel
Sensor: 6-axis gyro, Barometric Pressure, GPS
Sensitivity: -97dBm
Output: PWM (71Hz)
Transmission Range: More than 1,000 meters on the ground, more than 1,600 meters in the air
Input Voltage: 3.6V ~ 16V
Dimensions (L x W x H): 42.3 x 31 x 13.1mm
Weight: 14g
