TomCat G60 5030-420KV Motor w/ Skylord 80A ESC Combo Set

This power combo features the Skylord 80A ESC 5V/5A BEC and TomCat TC-G-5030-KV420 (G60) brushless motor, delivering robust power, precise control, and rapid response. Its advanced design ensures superior performance and innovative technology for an enhanced RC experience.

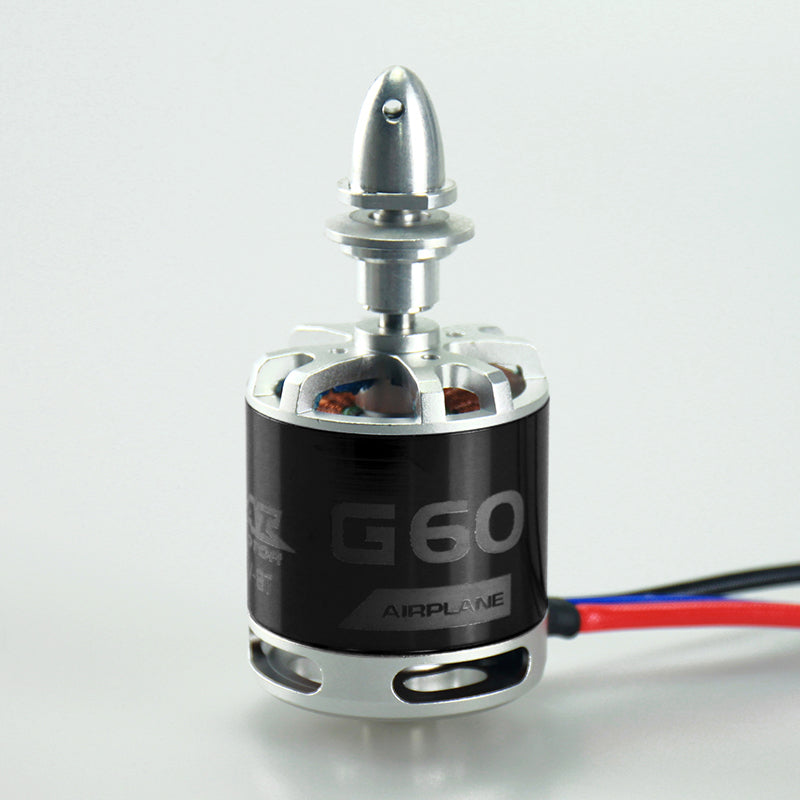

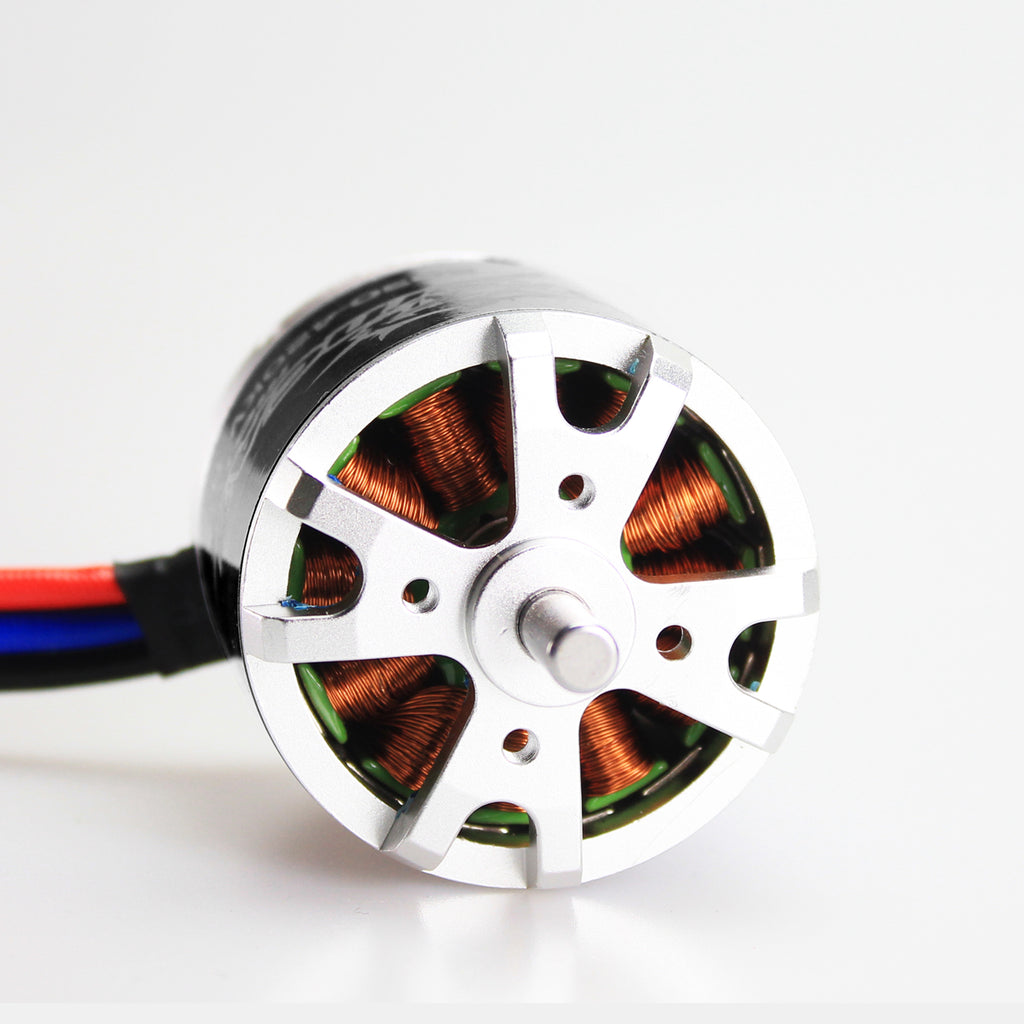

The TomCat G60 5030-420KV Outrunner Brushless Motor is perfect for powering 60-size planes. Designed for exceptional performance and reliability, it runs on 5-7 cell LiPo batteries and pairs with an 80 Amp ESC. Rated at 1600 Watts, it has a suggested max amp draw of 60 Amps (72 Amps burst).

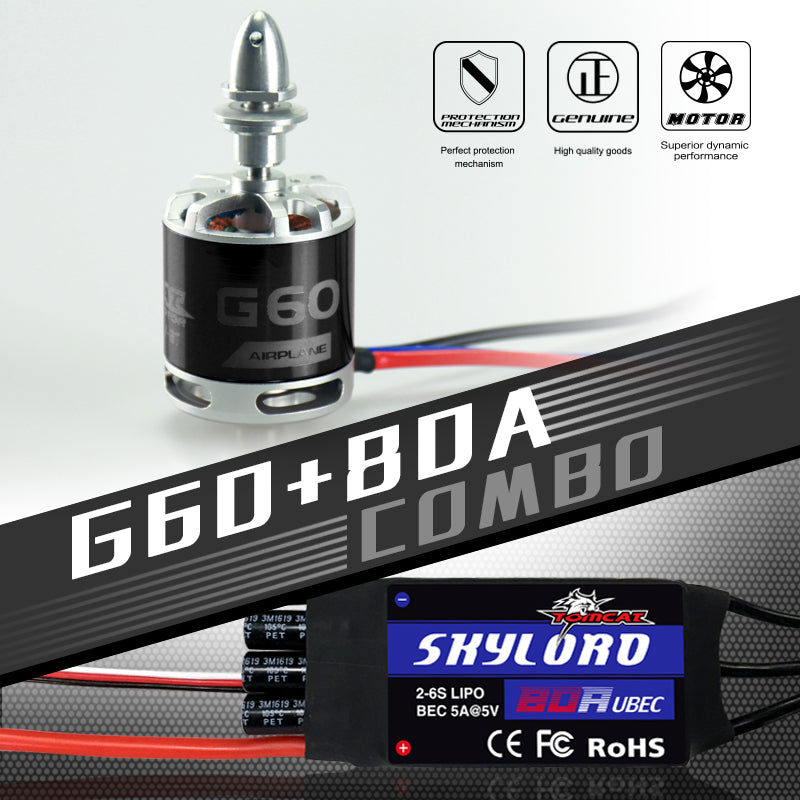

This power combo set includes:

• Skylord 80A ESC (with 5V/5A BEC) x1

• TomCat Brushless Motor G60 x1

TomCat G Series Balsa EP Planes Brushless Motor Features:

• High-Strength Aluminum Alloy Casing: Enhances impact resistance.

• Wear-Proof Bearing: Ensures smooth, high-speed rotation and longevity.

• Heat-Resistant Magnet Wire: 240° resistant, vacuum impregnated for better heat conduction and longer service life.

• High Conductivity Silicon Steel: Made in Japan, boosts motor efficiency.

• N45H Magnets: High torque output, resistant to demagnetization at high temperatures.

• Optimized Heat Dissipation: Innovative design for efficient cooling and consistent performance.

• Dynamic Balancing: Reduces vibration and noise, ensures stable high-speed operation.

• Versatile Accessories: Includes 75cm extension cord and 10cm assembled wire for flexible connections.

• Enhanced Compatibility: Pairs excellently with Skylord series ESC, offering outstanding performance in Balsa EP airplanes.

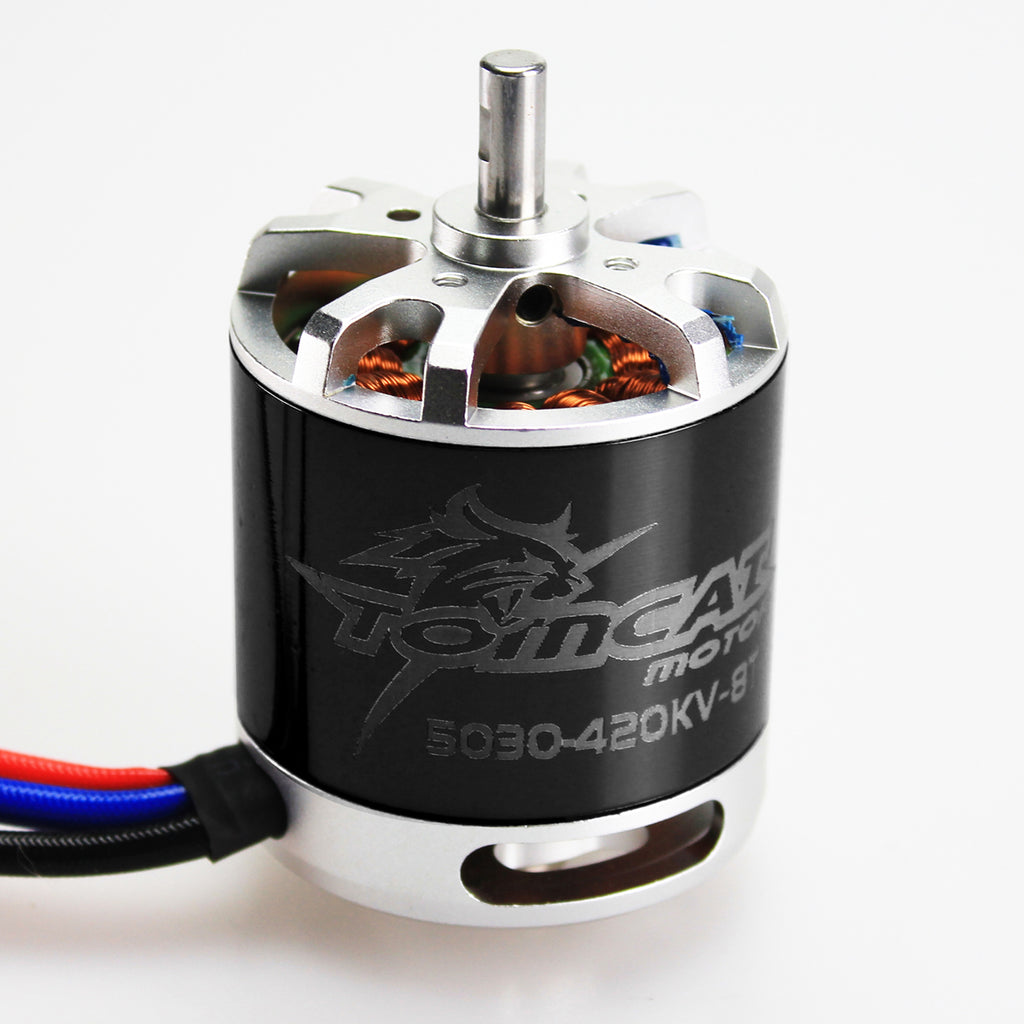

TomCat G60 Motor Specifications:

• Type: TC-G-5030-KV420 (G60)

• KV(rpms per volt): 420

• No load current: 2.8 A @10V

• Resistance: 0.029 ohms

• Watts: up to 1600

• Continuous Current: 60A

• Max Burst Current: 72A,10seconds

• Cells: 5–7 S Li-Po (G60 5030-420KV-8T 5-7 Cell Lipo)

• Recommended Props: 14x8 to 16x10

• Slots,Poles: 12,14

• Motor Outer Dia: 50 mm

• Shaft Dia: Diameter 6.0 mm

• Weight: 14.39 oz (408g)

• Brushless ESC: 80A


Skylord Electronic Speed Controller (ESC) Features:

• The ESC's microprocessor is powered by a separate voltage regulator IC for enhanced anti-jamming, reducing the risk of loss of control.

• Throttle range is configurable, compatible with most transmitters, providing smooth, accurate speed control and excellent throttle linearity.

• Maximum motor speeds: 210,000 RPM (2 poles), 70,000 RPM (6 poles), 35,000 RPM (12 poles).

• Three start modes: Normal (fixed-wing), Soft, and Super-soft (helicopters).

• Comprehensive protection features: low voltage, over-heat, over-load, and throttle signal loss, extending ESC lifespan.

• Selectable timing supports both aircraft and disc-type motors.

• Multiple programmable options to suit various needs.

• Optional 3-in-1 programming card offers an intuitive, compact interface for easy ESC programming.
