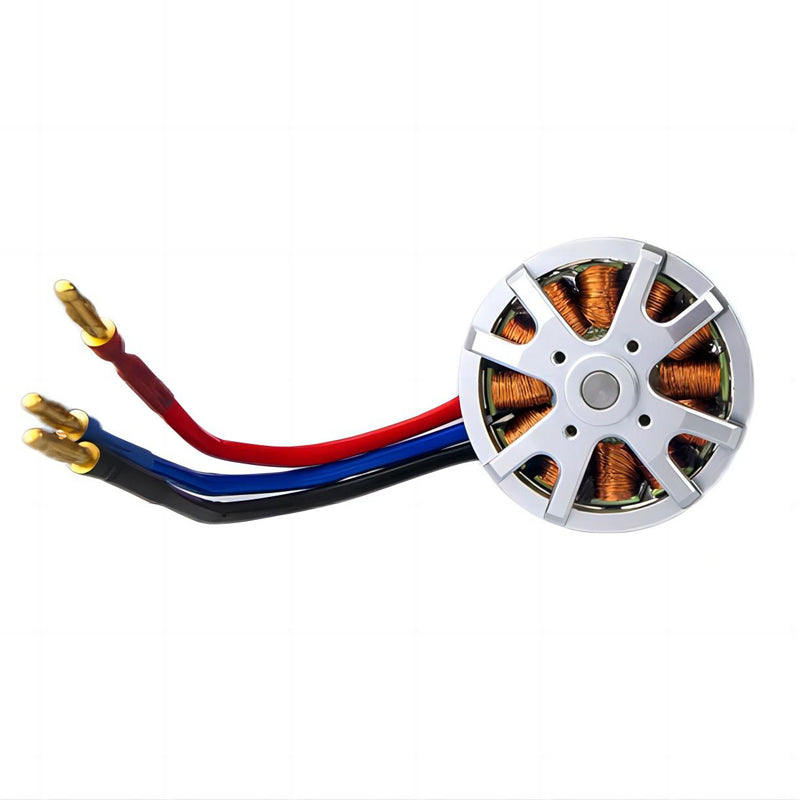

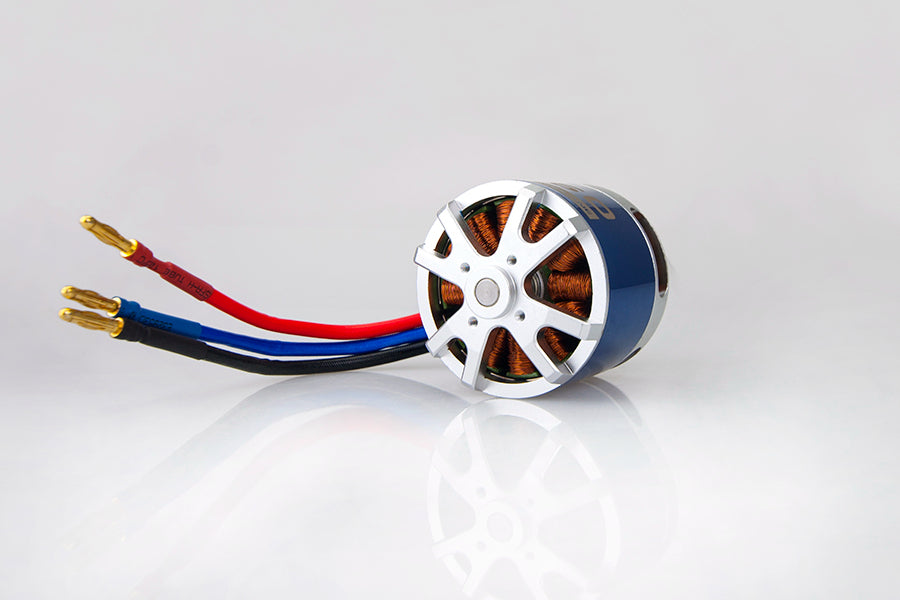

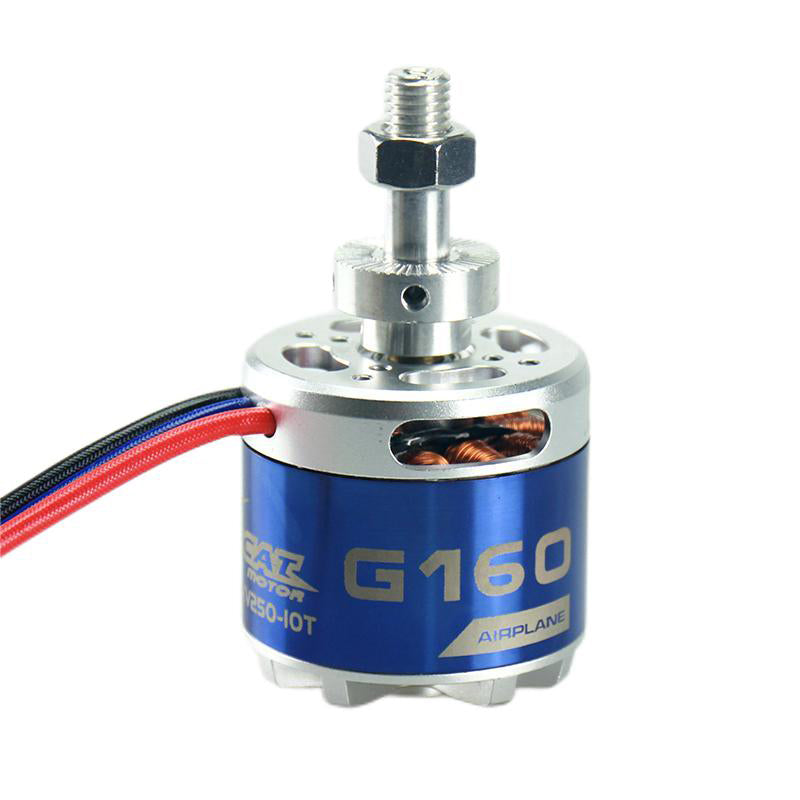

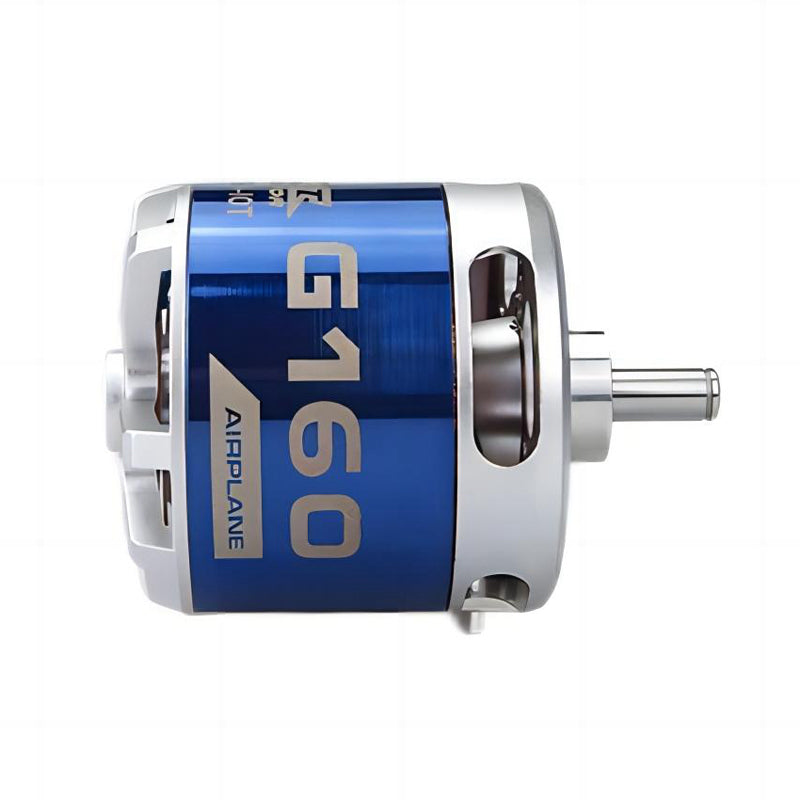

TomCat G160 6330-250KV Outrunner Motor for (160 Glow) Balsa EP Airplane

TomCatSKU: TC-G-6330-KV250

Price:
Sale price$119.00 USD
Stock:
In stock

Description

TomCat G160 6330-250KV Outrunner Brushless Motor for (160 Glow) Balsa EP Airplane

TomCat G160 6330-250KV Outrunner Brushless Motor is designed to power 160-size planes. With its powerful output and efficient design, the TomCat G160 can help you achieve the performance you need for your R/C project. Run this motor on 9-10 cell lipo and match it with an ESC of 100 Amp or more. The G160 motor is rated up to 2800 Watts, with a suggested max amp draw of 62 Amps (80 Amps Burst).

The TomCat G series Balsa EP Planes brushless motor is designed to deliver outstanding performance and reliability. With advanced features and meticulous engineering, it ensures smooth, high-speed rotation and robust performance over extended periods.

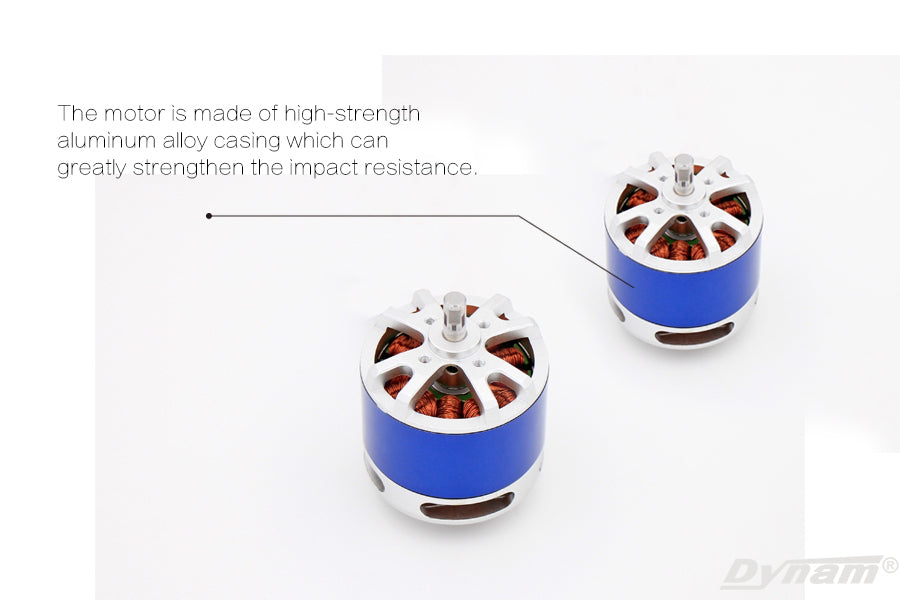

High-Strength Aluminum Alloy Casing:

Constructed from high-strength aluminum alloy.
Greatly enhances impact resistance.

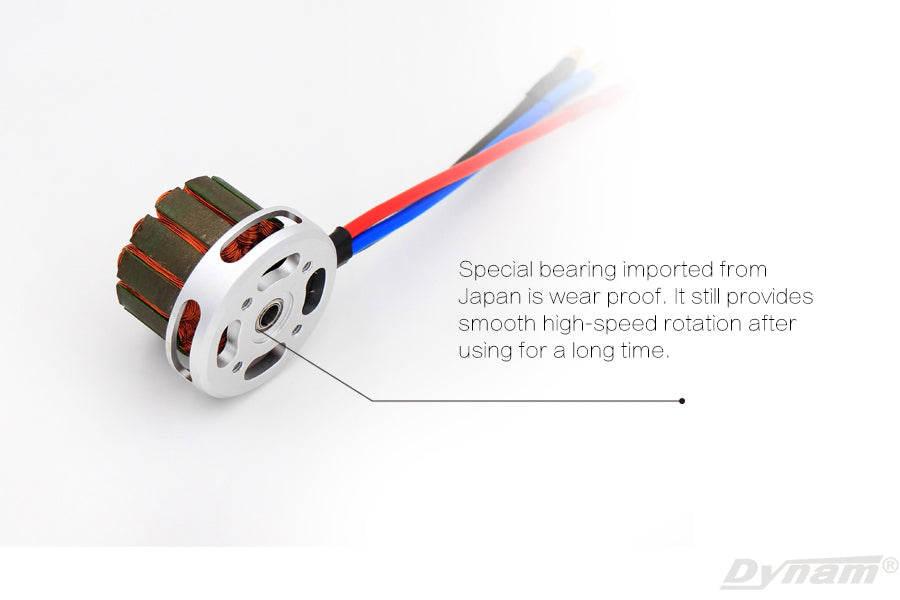

Wear-Proof Bearing:

Provides smooth high-speed rotation.
Ensures long-lasting, high-strength performance with excellent concentricity.

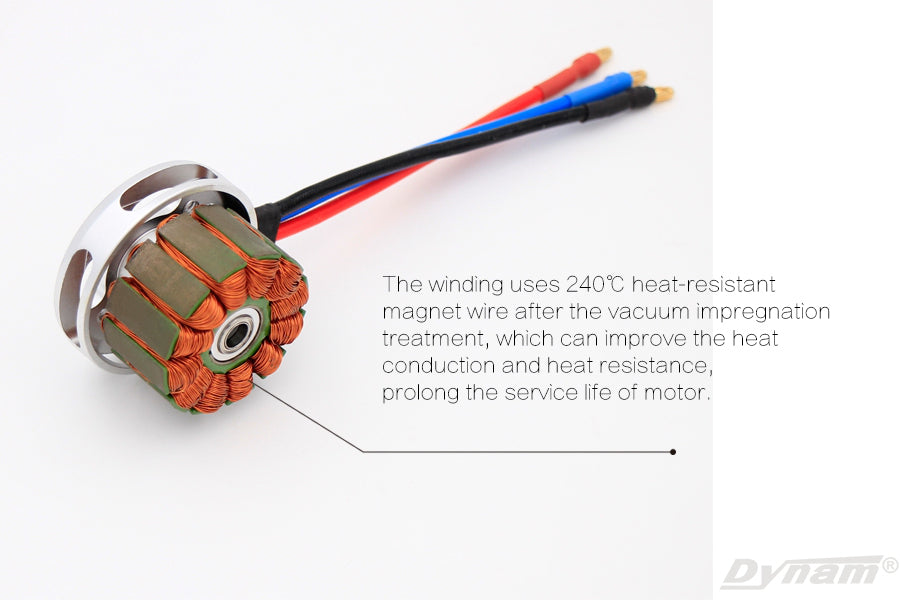

Heat-Resistant Magnet Wire:

Utilizes 240° heat-resistant magnet wire.
Treated with vacuum impregnation to enhance heat conduction and resistance.
Prolongs the motor's service life.

High Conductivity Silicon Steel Sheets:

Made in Japan.
Offers superior magnetic conductivity, enhancing motor efficiency.

N45H Magnets:

Resistant to demagnetization even at high temperatures.
Ensures reliable high torque output under extreme conditions.

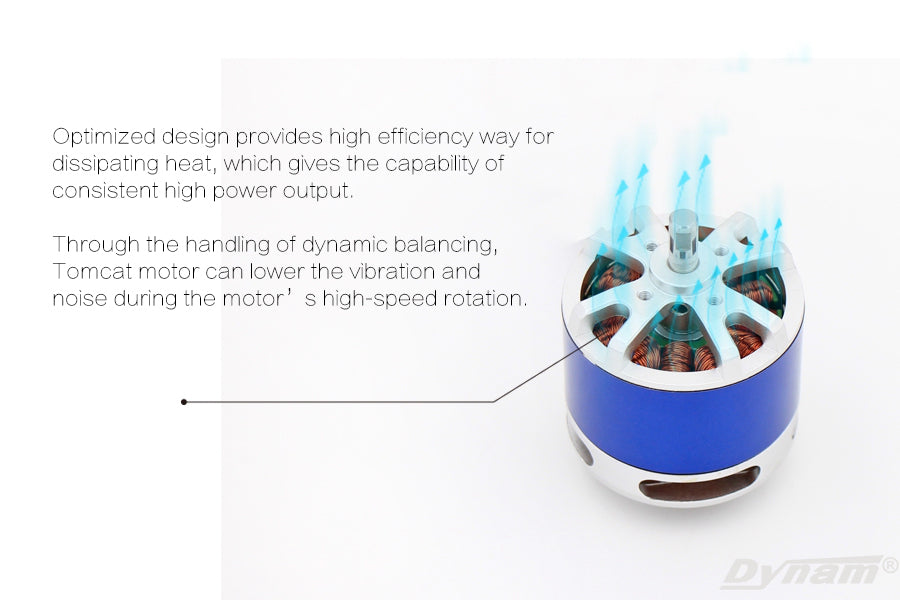

Optimized Heat Dissipation:

Innovative design facilitates efficient heat dissipation.
Enables consistent high power output and reliable performance.

Dynamic Balancing:

Rigorous dynamic balancing tests reduce vibration and noise.
Ensures quiet and stable high-speed operation.

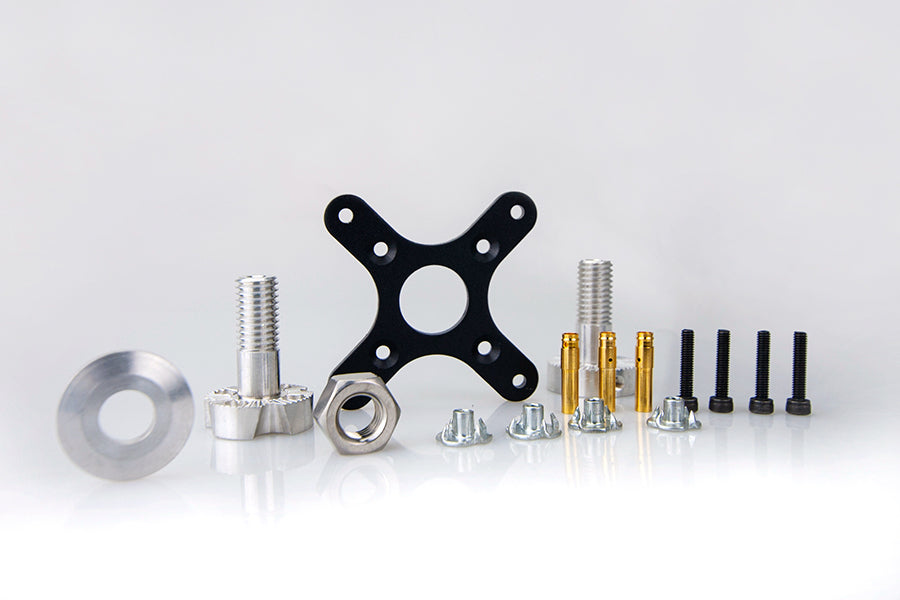

Versatile Accessories:

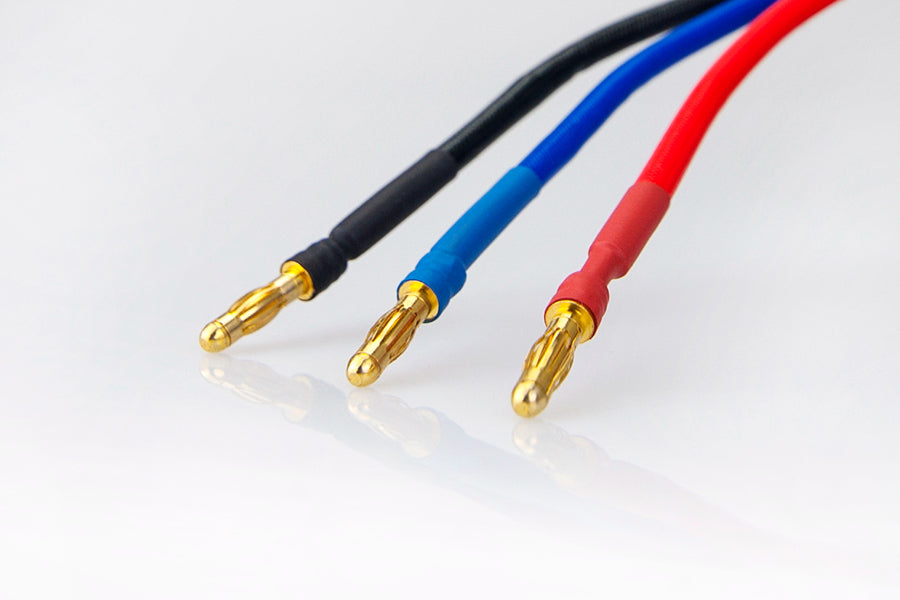

Includes a 75cm extension cord in addition to the 10cm assembled wire for flexible motor connections.
Rich set of accessories meets various installation needs.
Guarantees high-quality and high-performance operation.

Enhanced Compatibility:

When paired with Skylord series ESC, the TomCat brushless motor excels in Balso EP airplanes.
Delivers excellent performance and an exceptional flying experience.

Experience the cutting-edge engineering of the TomCat motor, where precision, power, and performance converge to exceed your expectations.

TomCat Motor G Series Substitute for Glow/Gas Engine

TomCat Motor G Series for Airplanes

Specifications

Type: TC-G-6330-KV250 (G160)
KV(rpms per volt): 250
No load current: 2.3 A @10V
Resistance: 0.031 ohms
Watts: up to 2800
Continuous Current: 62A
Max Burst Current: 80A,10seconds
Cells: 9–10 S Li-Po (G160 6330-250KV-10T 9-10 Cell Lipo)
Recommended Props: 18x8 to 20x10
Slots,Poles: 12,14

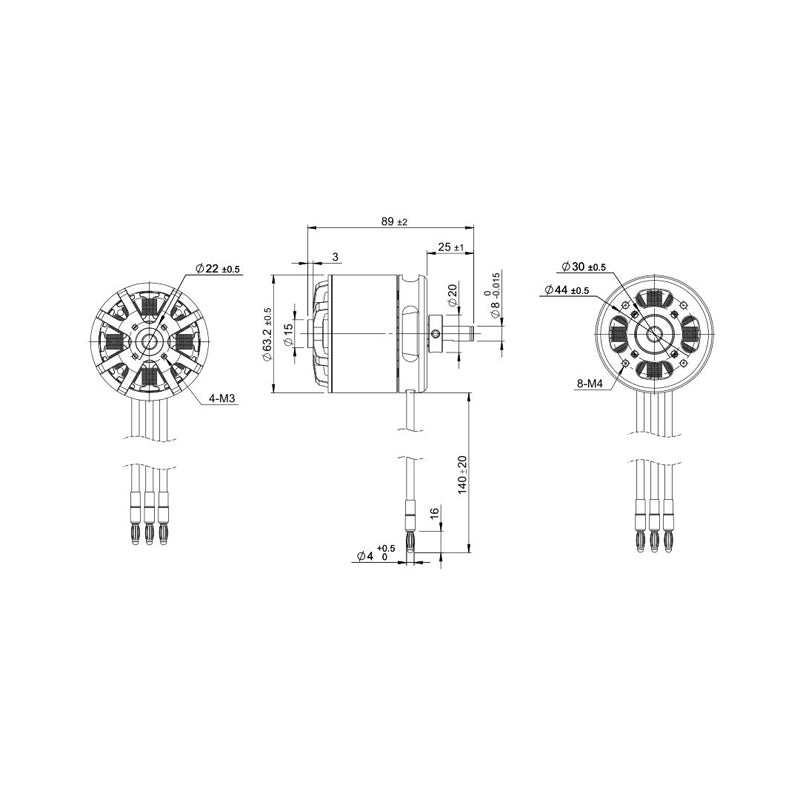

Motor Outer Dia: 63.2 mm
Shaft Dia: 8.0 mm
Weight: 24.05 oz (682g)
Brushless ESC: 80A
