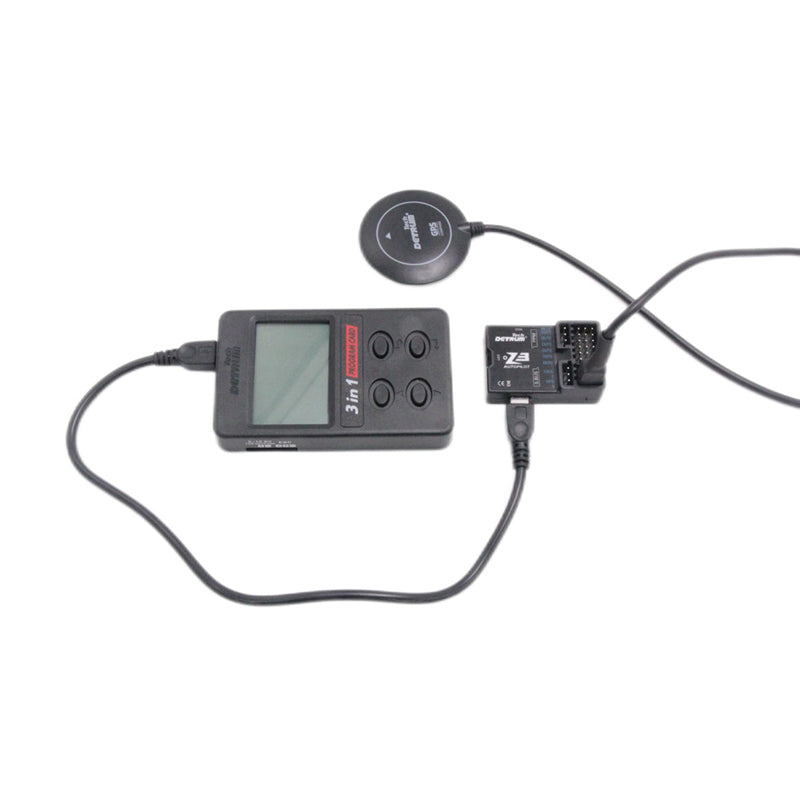

Detrum Z3 Flight Controller for Nitro & Gas Airplanes w/ GPS and 3-in-1 Program Card Combo

DetrumSKU: DTM-1010

Price:
Sale price$136.99 USD
Stock:
In stock

Description

Detrum Z3 Flight Controller for Nitro & Gas Airplanes w/ GPS and 3-in-1 Program Card Combo - DTM-1010 (Nitro Version)

Detrum Z3 is a flight controller for fixed-wing airplanes, including normal, delta-wing, and V-tail airplanes. It connects to the receiver on the airplane to provide flight control.

Z3 supports five flying modes:

  • Return Home Mode: once actuated, the airplane flies back to the location where it takes off regardless of the airplane flight attitude;
  • Normal Stabilization Mode: provide basic gyro function to the airplane;
  • Safe Mode: control the airplane with pre-set parameters, including altitude and direction;
  • 3D Lock Mode: hold the position;
  • Autopilot Off Mode: pilot takes full control of the airplane.

When the transmitter signal is lost due to being out of range, or the airplane is out of position due to a pilot mistake, the autopilot functions and takes control to fly the airplane automatically back, which gains precious time for the pilot to react!

Z3 has an innovative and simple way to actuate horizontal calibration, making a computer or power reset unnecessary.

Z3 is compatible with ALL of the major 2.4 G systems in the market and supports DSM, S.BUS, and PWM receivers. Pairing with a Detrum program card, the parameters can be easily programmed.

The telemetry function with Detrum Blitz DT-9 and RXC9M system provides real-time flight information, including attitude, speed, altitude, distance, and satellite reception. Flight information (max, min, average) is recorded and available for pilots to review after completing the flight.

Note: Detrum Z3 ( Nitro version), according to the characteristics of Nitro & Gas Airplanes with large vibration, we have optimized the filtering algorithm to eliminate the impact of engine vibration on flight control so that Flight control can be applicated to methanol aircraft and gasoline aircraft. And according to the throttle control mode of the gasoline-powered aircraft, the adjustment of the throttle stop and the idle speed are added so that the aircraft does not risk stalling or the throttle servo being damaged when returning from self-driving.

Features

Return Home - Adding path control based on the auto-recovery mode allows the airplane to automatically plan the path and lead the airplane back to the starting point. Height is controllable during the return flight. You can exit the return mode anytime by waving the return switch, supporting the one-button and signal loss returns.

Main Control IC - 32-bit high-performance ARM core processor, 6-axis MEMS gyro chipset.

Control Algorithm - Original airplane attitude stabilization algorithm and control algorithm. Support normal-wing, fly-wing, V-tail airplanes, and 3D planes.

Flight Mode - Four modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance). You can switch between different modes by the toggle switch.

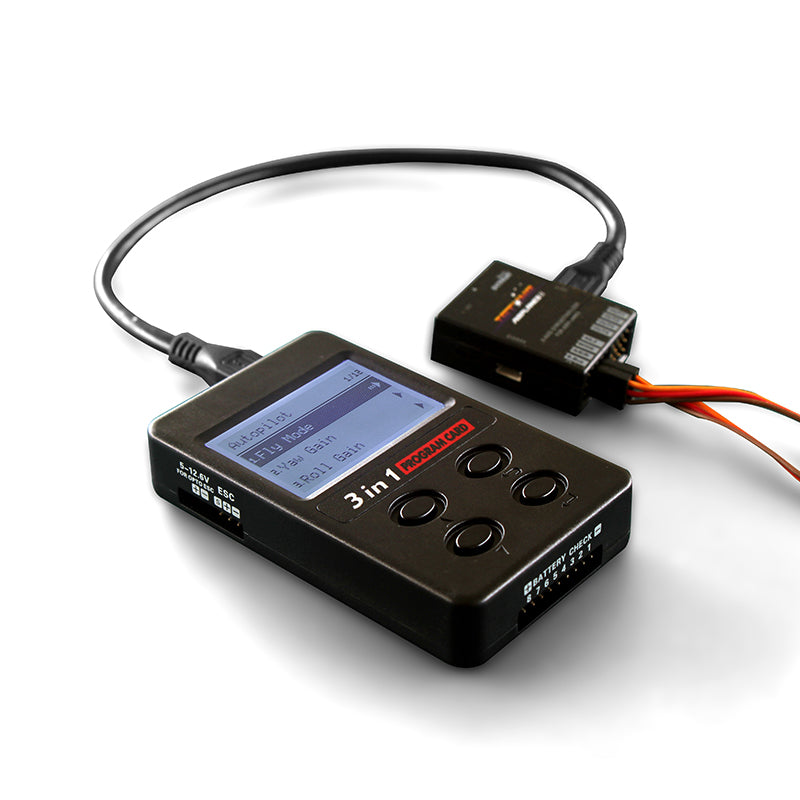

Adjusting the Gain - Set the gain and other programmable items with a 3in1 program card.

Compatibility - Support PPM, S.BUS, S.UBS2, DSM2, and DSMX receivers.

Specifications

Main Controller: 32-bit ARM core processor
Sensor: 6-Axis Gyro, Barometric Pressure, GPS
Gyro Scale Range: -2000dps ~ +2000dps
Accelerometer Scale Range: -4g ~ +4g
Input Signal: PPM, Futaba S.Bus, DSM
Output Signal: PWM(71.4Hz) 6-Channel
Input Voltage: 4.8V ~ 7.4V
Operating Temp: -20°~ 70°
Size: 36.5*29.4*12.6mm
Weight: 12g
