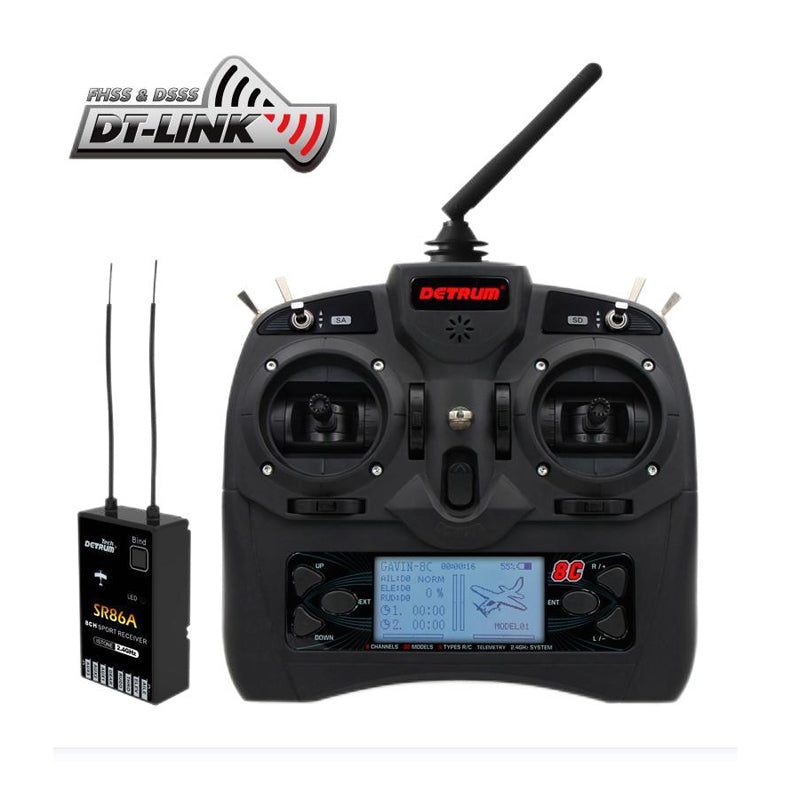

Detrum GAVIN-8C 8CH 2.4Ghz RC Transmitter w/ iStone SR86A Stabilizer Receiver

Detrum GAVIN-8C Transmitter

Applicable for airplanes, helicopters, and multi-copter.
30 model memory.

Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping spread spectrum (FHSS) technologies, the R/C system has high receiving sensitivity and strong anti-interference capability, can support a stable operating for more than 1km on the ground and more than 1.6km in the air.

Adopting wireless chips with extended power amplifiers (PA) and low noise amplifiers (LNA) can improve the system output power and receiving sensitivity.

Using an all-band antenna on the transmitter. The transmitting efficiency is greatly improved.

Can experience a smooth flight operation by using the 4096-section precision sticks and selecting four stick modes.

Achieving 2.6ms response time, even with eight channels, it acts synchronously.

USB upgrade function always keeps your GAVIN-6C in the latest program.

Support Fail Safe function, which could predefine the transmitter's servo position when the receiver is out of control.

The trainer function makes a skilled instructor can teach a student with fly skills.

It can be used to set the programmable item of the flight controller for the airplane.

Customers can use AA, Ni-MH, and Li-Po batteries.

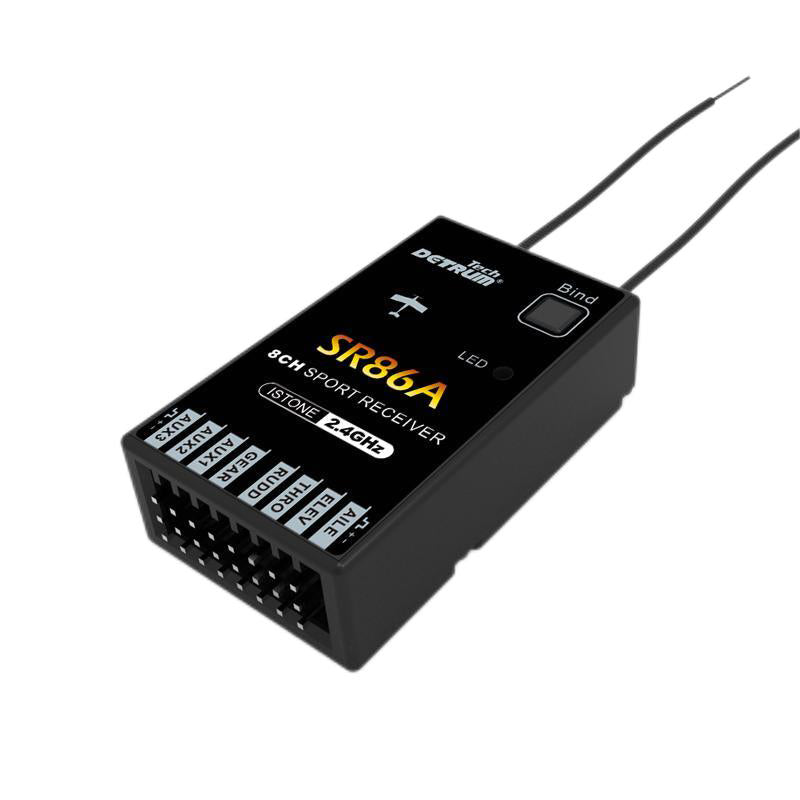

iStone SR86A Stabilizer Receiver

Built-in flight stabilization to dampen the effects of wind and weather.

Strong Anti-Interference for ultimate stability and reliability.

Main Control IC - 32-bit high-performance ARM core processor, 6-axis MEMS gyro chipset.

Control Algorithm - Original airplane attitude stabilization algorithm and control algorithm. Support normal wing, Delta, V-tail airplanes, and 3D planes.

Flight Mode - Four modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance). You can switch between different modes by the toggle switch.

Adjusting the Gain - Set the gain and other programmable items with the matched transmitter.

High Sensitivity - SR86A adopts 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping (FHSS) technologies, having high receiving sensitivity and strong anti-interference capability.

Diversity Antenna - Using a diversity antenna, combined with the signal detection and switching algorithm, makes the receiving signal stable and reliable.

Unique ID Code - Once the binding is made, the ID code is stored in the receiver, and no further binding is necessary after restarting the receiver.

Fail-Safe - If the aircraft flies out of the remote control range and cannot receive a valid RF signal from the transmitter, SR86A’s outputs can be driven to their preset failsafe positions.

Output Signals - 8-channel PWM.

Compatibility - Detrum receivers are only compatible with Detrum Gavin radios.

Detrum GAVIN-8C Transmitter

Channel: 8-channel
Transmitting frequency: 2.4GHz
Power supply: AA batteries 4*1.5V, Ni-MH batteries 4*1.2V, 2S Li-Po
Consuming current: less than or equal to 120mA (test mode); less than or equal to 230mA (operating mode).
Output power: 10mW (test mode); 100mW (operating mode).
Output pulse: 1000ms~2000ms (neutral 1500ms)

iStone SR86A Stabilizer Receiver

Number of Channels: 8
Modulation / Protocol: DSSS / FHSS
Band: 2.4GHz
Range: Full
Telemetry: No
Integrated Gyro: 6-Axis
Voltage Range: 3.6-16V
Antenna: Dual Diversity
Sensitivity: -97dBm
Output: PWM (71Hz)
Transmission Range: More than 1,000 meters on the ground, more than 1,600 meters in the air
Dimensions (L x W x H): 51 x 28.3 x 14.5mm
Weight: 15g
