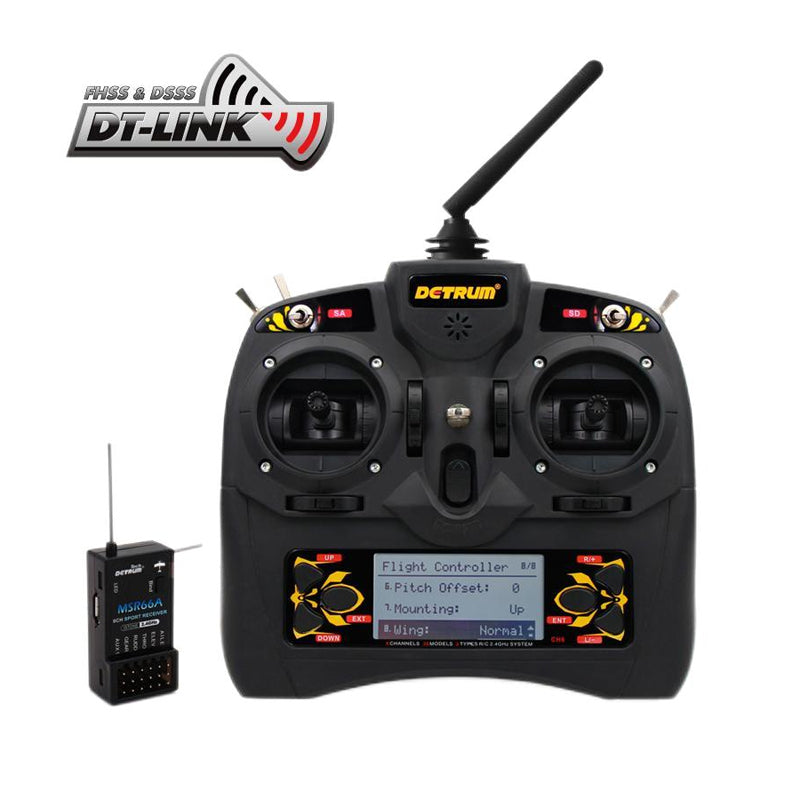

Detrum GAVIN-6C 6CH 2.4Ghz RC Transmitter w/ iStone MSR66A Stabilizer Mini Receiver

GAVIN-6C transmitter

Applicable for airplanes, helicopters, and multi-copter.
30 model memory.

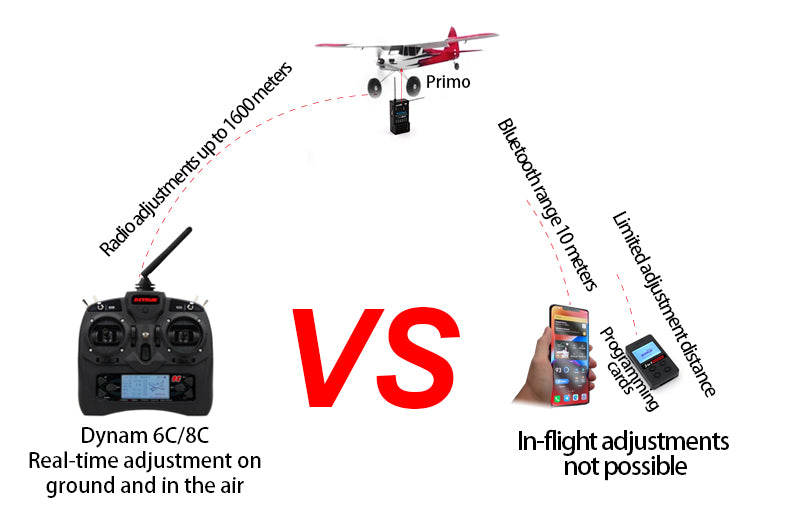

Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequence-hopping spread spectrum (FHSS) technologies, the R/C system has high receiving sensitivity and strong anti-interference capability, can support a stable operating for more than 1km on the ground and more than 1.6km in the air.

Adopting wireless chips with extended power amplifiers (PA) and low noise amplifiers (LNA) can improve the system output power and receiving sensitivity.

The transmitting efficiency is greatly improved by using the all-band antenna on the transmitter.

Can experience a smooth flight operation by using the 4096-section precision sticks and selecting four stick modes.

Low-power devices could reduce transmitting power, leading to low power consumption and longer battery life.

USB upgrade function always keeps your GAVIN-6C in the latest program.

Support Fail Safe function, which could predefine the transmitter's servo position when the receiver is out of control.

The trainer function makes a skilled instructor can teach a student with fly skills.

It can be used to set the programmable item of the flight controller for the airplane.

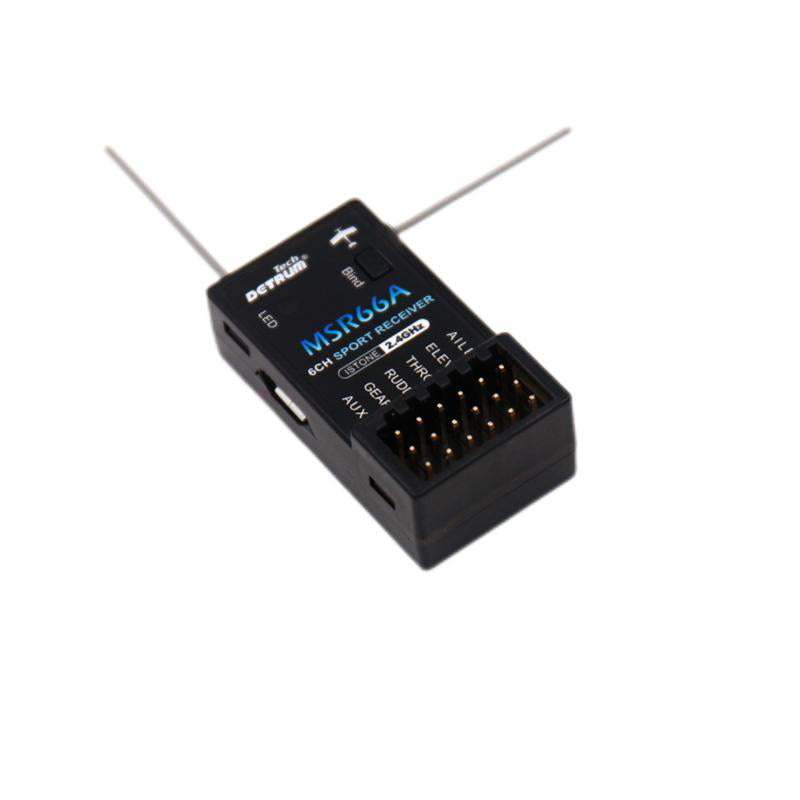

iStone MSR66A mini receiver

32-bit high-performance ARM core processor, 6-axis MEMS gyro chipset.

Compact size suitable for small-scale aircraft such as park flyers.

Supports normal wing, flying wing, V-tail airplanes, and 3D planes.

Easily switch between four flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance).
Set the gain and other programmable features with the matching transmitter or program card (not included)
MSR66A receiver adopts the 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping (FHSS) technologies.

High receiving sensitivity and strong anti-interference capability.

Diversity Antenna combined with the signal detection and switching algorithm allows the receiving signal to be stable and reliable.

Once the binding is made, the ID code is stored in the receiver, and no further binding is necessary after restarting the receiver.

With the Fail Safe feature, if the aircraft flies out of range and cannot receive a valid RF signal from the transmitter, SR86A’s outputs can be driven to their preset failsafe positions.

6-channel PWM.

GAVIN-6C Transmitter

Channel: 6-channel
Transmitting frequency: 2.4GHz
Spread spectrum: DSSS&FHSS
Power supply: AA batteries 4*1.5V, Ni-MH batteries 4*1.2V, 2S Li-Po
Consuming current: less than or equal to 120mA (test mode); less than or equal to 230mA (Operating mode).
Output power: 10mW (test mode); 100mW (Operating mode).
Output pulse: 1000ms~2000ms (neutral 1500ms)


iStone MSR66A Mini Receiver

Number of Channels: 6
Modulation / Protocol: DSSS / FHSS
Band: 2.4GHz
Range: Full
Telemetry: No
Integrated Gyro: 6-Axis
Voltage Range: 3.6-16V
Antenna: Dual Diversity
Communication Distance: ＞1.1Km
Output Signal: PWM
Dimensions (L x W x H): 37 x 20 x 13mm
Weight: 7g


Packing lists

GAVIN-6C transmitter x1
RXC6 mini Receiver x1
Bind Plug x1
Introduction Manual x1
