Detrum GAVIN-6A 6CH 2.4Ghz RC Transmitter Set (TX+RXC7, w/o LCD)

DetrumSKU: DTM-T005

Version: Mode 1 - Right Throttle
Price:
Sale price$89.00 USD
Stock:
In stock

Description

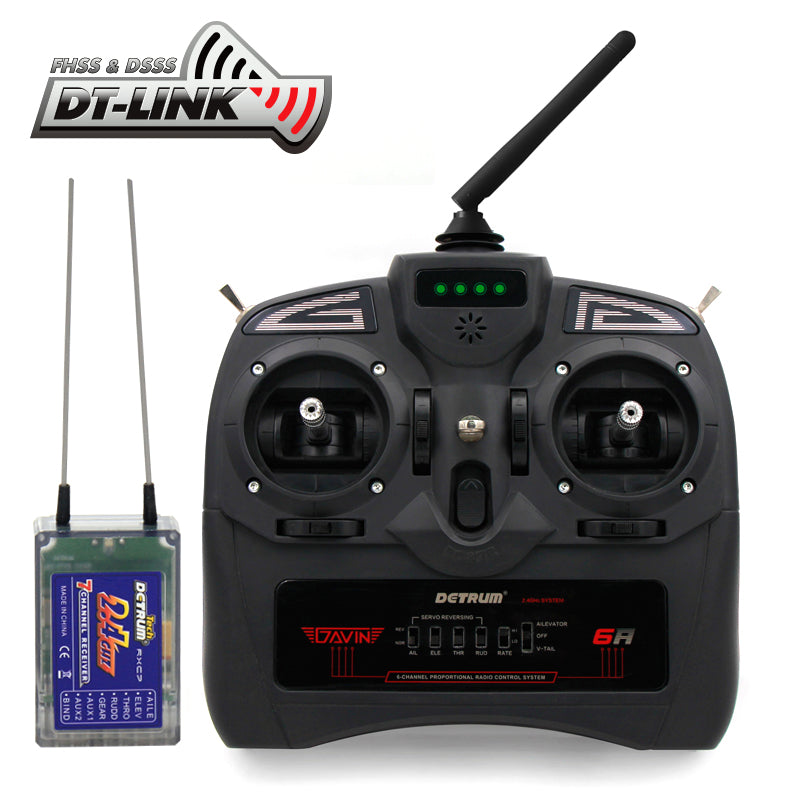

Detrum GAVIN-6A 6CH 2.4Ghz RC Transmitter Set (TX+RXC7, w/o LCD)

Detrum GAVIN-6A is a 2.4GHz 6-channel transmitter, applicable for airplanes. Using low-power devices leads to longer battery life. Support two stick modes to meet different operating habits and support one button to toggle between off, V-tail, and elevon mixing.

The DSSS&FHSS dual spread spectrum technology will enhance the transmitter by increasing the anti-interference performance and transmission distance. It even can be controlled normally in the city center, do not worry about the strong interference from high-voltage lines, signal towers, city WiFi, Etc.

The Detrum RXC7 receiver is compatible with the Detrum GAVIN 6C and 6A radios. The RXC7 utilizes a diversity antenna that automatically switches the signal to ensure stability. Adopting a 2.4GHz Direct Sequence Spread Spectrum (DSSS) and multiple frequency-hopping technology, the RXC7 has high sensitivity and strong anti-interference performance.

Features

GAVIN-6A transmitter

Applicable for airplanes.

Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequence-hopping spread spectrum (FHSS) technologies, the R/C system has high receiving sensitivity and strong anti-interference capability, can support a stable operating for more than 1km on the ground and more than 1.6km in the air.

Adopting wireless chips with extended power amplifiers (PA) and low noise amplifiers (LNA) can improve the system output power and receiving sensitivity.

The transmitting efficiency is greatly improved by using the all-band antenna on the transmitter.

Can experience a smooth flight operation by using the 4096-section precision.

Using low-power devices could reduce the transmitting power, leading to low power consumption and longer battery life.

Support one button to toggle between off, V-tail and Elevon mixing.

Battery level LED indicators and low battery alarm function make the flight safer.

Four digital trims make your operation more accurate.

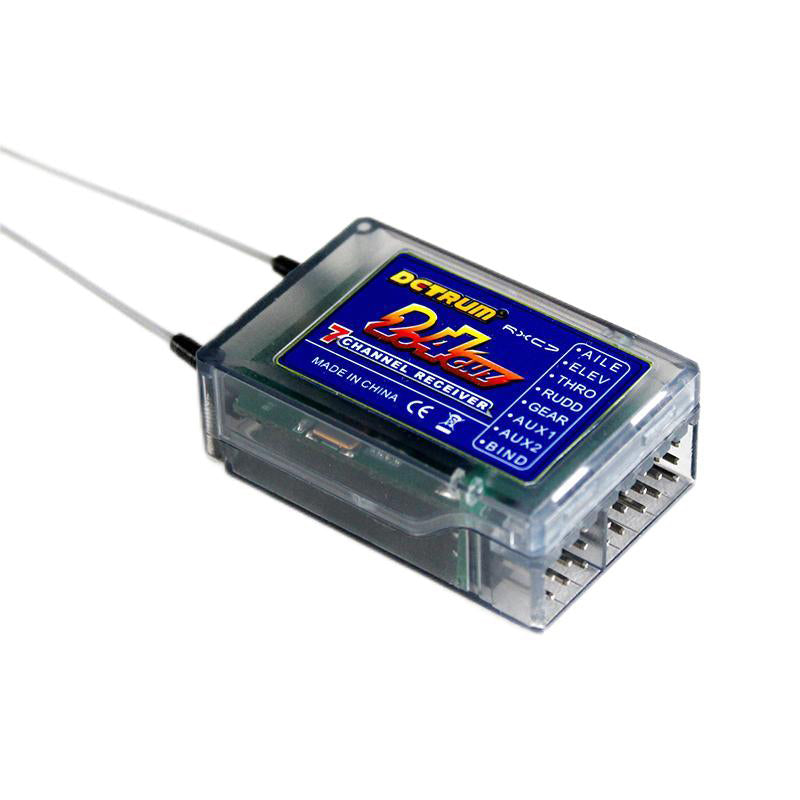

RXC7 receiver

Diversity antenna with auto-switching technology to ensure maximum signal stability.

2.4GHz Direct Sequence Spread Spectrum (DSSS) technology.

High Sensitivity and Strong Anti-Interference capability.

The onboard CPU offers excellent resolving power and Frequency/ID recognition.

Built-in fail-safe functionality.

Compatibility: Detrum receivers are only compatible with Detrum Gavin radios.

Specifications

GAVIN-6A transmitter

Channel: 6-channel
Transmitting frequency: 2.4GHz
Spread spectrum: DSSS&FHSS
Power supply: AA batteries 1.5V *4pcs
Consuming current: less than or equal to 200mA
Output power: 100mW
Output pulse: 1000ms~2000ms (neutral 1500ms)

RXC7 receiver

Number of Channels: 7
Modulation / Protocol: DSSS / FHSS
Band: 2.4GHz
Range: Full
Telemetry: No
Integrated Gyro: No
Voltage Range: 4.8-16V
Antenna: Dual Diversity
Dimensions (L x W x H): 39 x 28.5 x 14.5mm
Weight: 10g
