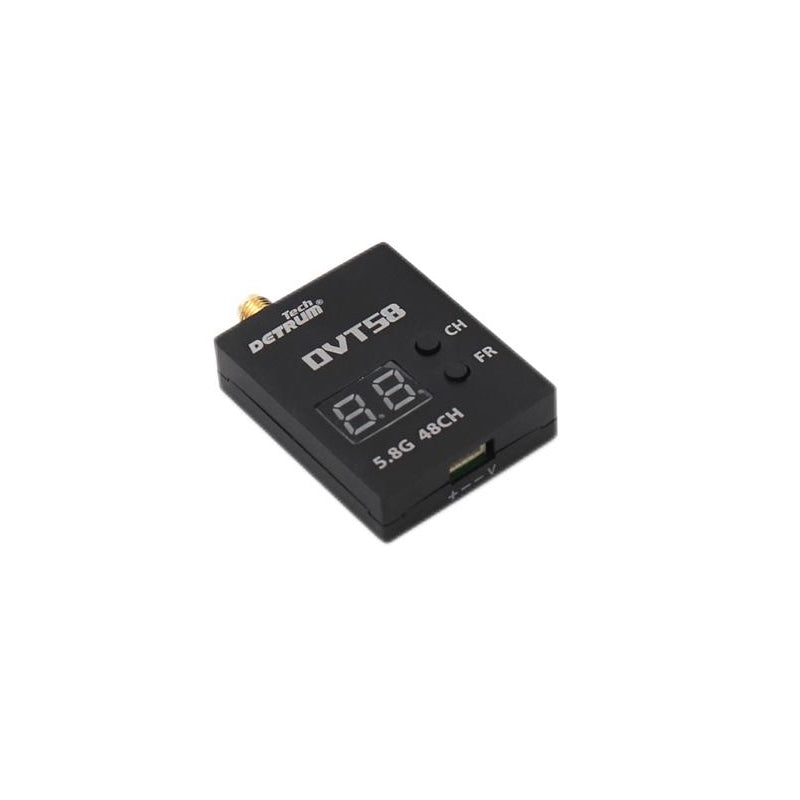

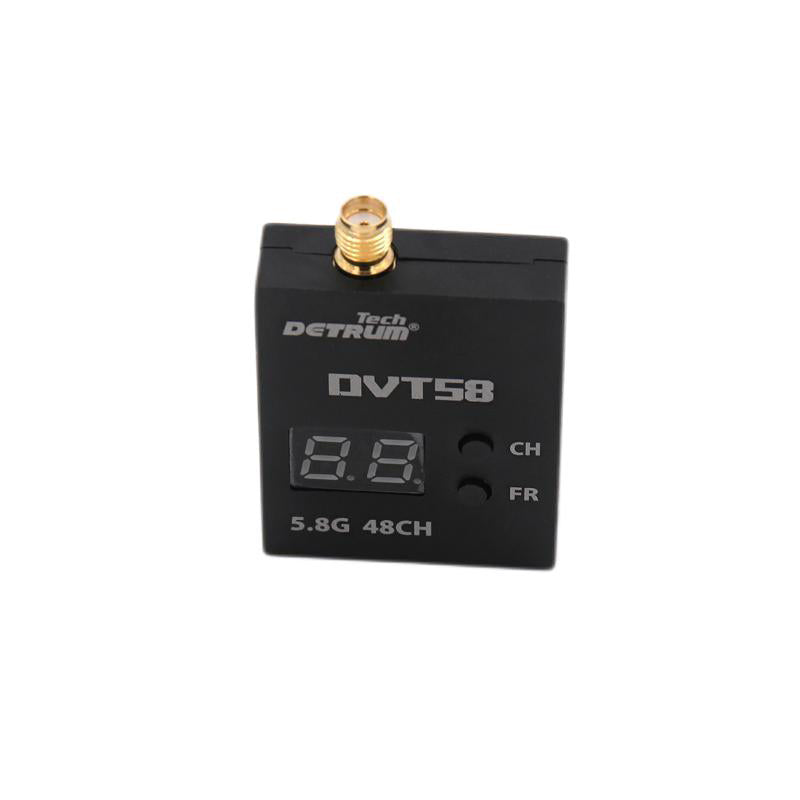

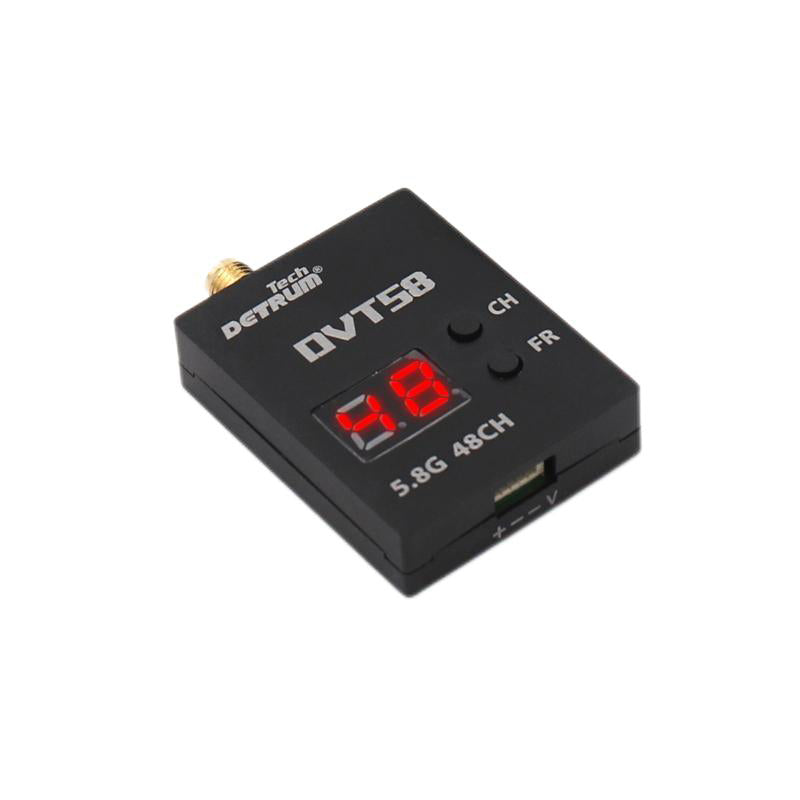

Detrum 5.8G 600mW FPV Video Transmission DVT58 Transmitter

DetrumSKU: DTM-DVT58600

Price:
Sale price$57.99 USD
Stock:
In stock

Description

Detrum 5.8G 600mW FPV Video Transmission DVT58 Transmitter - DTM-DVT58600

It is a 48-channel 5.8G 600mW wireless Detrum transmitter installed on the FPV aircraft. The transmission range is as far as 1.5km in an open area without any block.

Features

The output power of DVT58 is 600mW. The transmission distance is as far as 1.5km.
48 channels adjustable, the channel number can be displayed on the LED digital display.
Mini size, lightweight, and heat-sinking aluminum alloy shell, portable for the aircraft.
Integrated wires and plugs, easy to install.
Multiple receivers can be linked simultaneously, making it possible for everyone to hold a display to watch the video separately.

Specifications

Working Frequency: 5.8GHz ISM
Output Power: 600mW Channel: 48 CH
Input Voltage: DC 7V~17V
Supply Current: 300mA/12V
Video Input Impedance: 75Ω
Video Band Width: 8MHz
Video Format: NTSC/PAL
Working Temperature: -40~85℃
Dimension (L*W*H): 49.7x34.1x10.6mm
Weight: 16g (without antenna)

Packing List

DVT58 600mW x1
4-pin connector to DuPout connector and JST connector Cable x1


Note:

The antenna is not included. You need to purchase separately.
DVT58 600mW must be connected to the antenna when working. It is more stable and performs better when using a 5.8G Omni-directional Mushroom Antenna.
