Detrum 5.8G 48CH Video Transmission DVR58 Receiver

DetrumSKU: DTM-DVR58

Price:
Sale price$40.99 USD
Stock:
In stock

Description

Detrum 5.8G 48CH Video Transmission DVR58 Receiver - DTM-DVR58

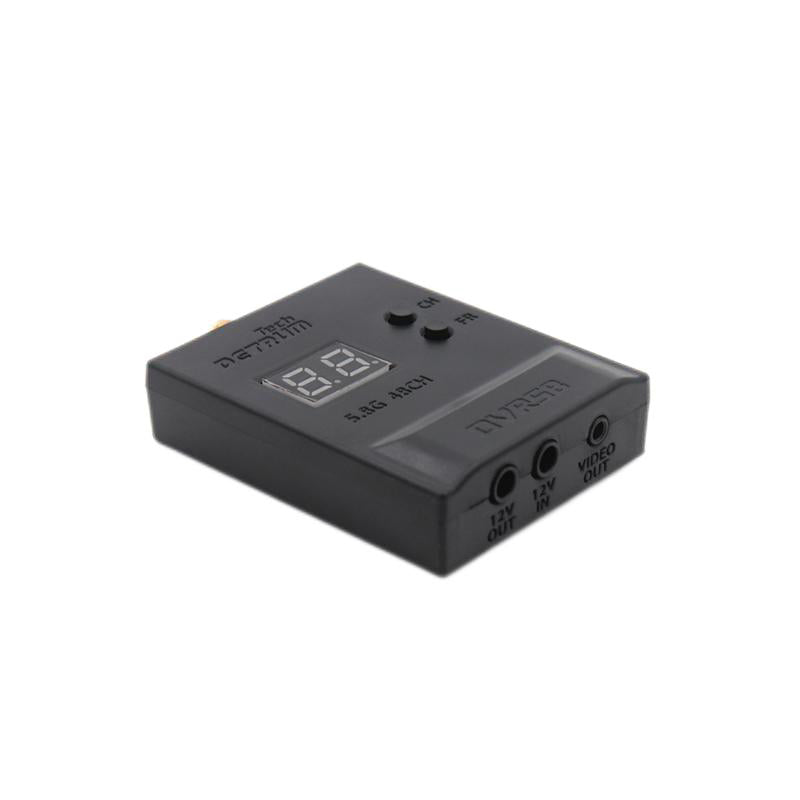

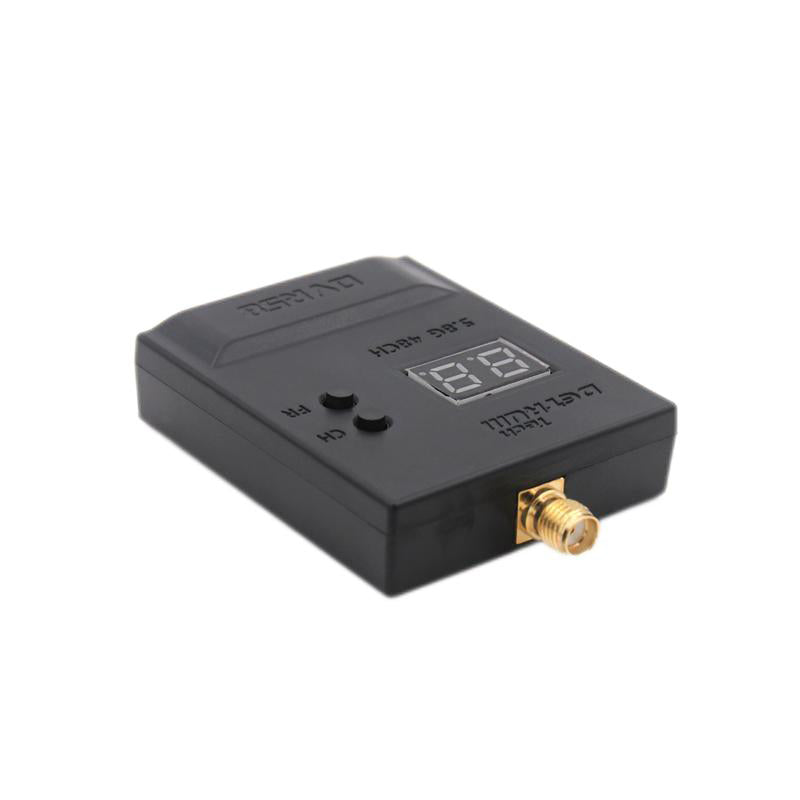

Detrum DVR58 is a 48 channels 5.8G wireless receiver used on the ground station for FPV use. It can receive the video signal from DVT58, demodulate it and send it to a monitoring display.

Features

48 channels adjustable, the channel number can be displayed on the LED digital displays.
DVR58 has a 12V/1A output interface, providing a stable voltage for the display.

Specifications

Working Frequency: 5.8GHz ISM
Channel: 48 CH
Input Voltage: DC 7V~17V
Supply Current: 80mA/12V
Output Voltage: 12V
Video Output Impedance: 75Ω
Working Temperature: -40~85℃
Dimension (L*W*H): 62.8*45*14.5mm
Weight: 28g (without antenna)

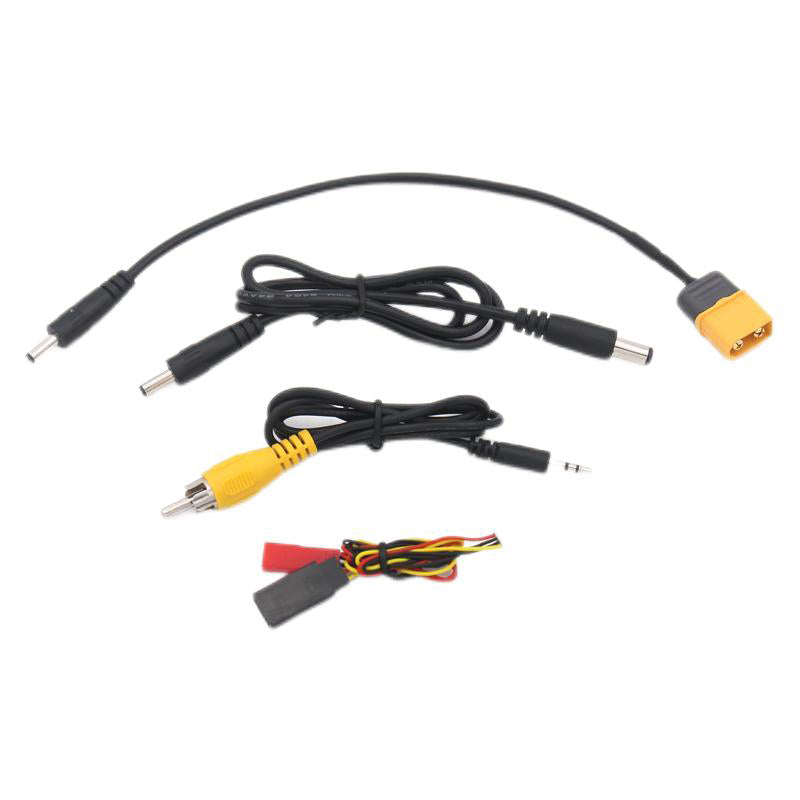

Packing List

DVR58 x1
DC3.5mm to DC5mm Cable x1
DC3.5mm to XT60 Cable x1
3.5mm Stereo Plug to RCA Plug Cable x1


Note:

The antenna is not included. You need to purchase separately.
DVR58 must be connected to the antenna when working. It is more stable and performs better when using a 5.8G Omni-directional Mushroom Antenna.
