How to Install Dynam DC-3 Skybus?

SKYB-001 Fuselage

SKYB-002 Cowl

SKYB-003 Wing Set

SKYB-004 Elevator

SKYB-005 Vertical Stabilizer

SKYB-006 Landing Gear

SKYB-007 Plastic Part

SKYB-008 Push Rod

SKYB-009 Decal

SKYB-010 Plastic Tabs

SKYB-011 Motor Mount

SKYB-012 Battery Cover

SKYB-013 Wing Tube

SKYB-014 Spinner

SKYB-015 Screw Set

BM2815A-KV1100-Motor-Shaft

BM2815A-KV1100 Motor

DY-1007 9g Servo

DY-3003 Epoxy Glue

DYP-1015S/R 8*6*3 Prop

DY-6006 11.1V 2200mAh 25C

DY-3001 Quick-controller

Skylord 30A ESC

2. Glue the horizontal stabilizer in place.

3. Apply the foam glue to the Vertical stabilizer.

4. Glue the vertical stabilizer in place.

5. Insert the pushrod into the elevator quick-controller and tighten the screw (the servo should be in the center position).

6. Repeat the steps for the rudder.

7. Apply the foam glue on the joiner of the left and right main wings.

8. Glue the left and right main wings together.

9. Apply the foam glue in the slot as shown.

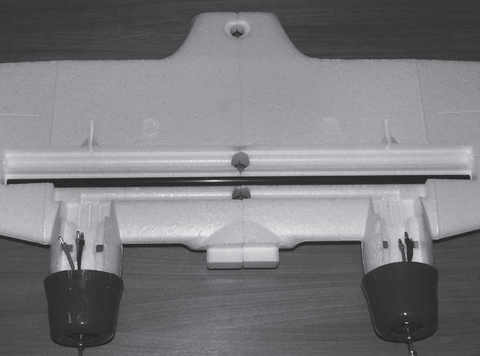

10. Push the fiberglass tube into the position.

11. Apply the foam glue on the plastic part and insert it in the main wing as shown.

12. Apply the foam glue on the joiner of the left landing feat and push it in position.

13. Repeat the steps for the right landing gear.

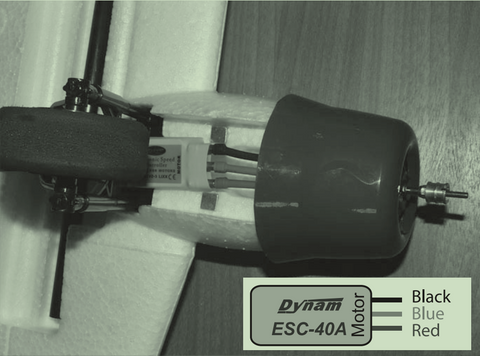

14. Connect the motor wires as shown.

15. Remove the tape from the wing back cover.

16. Press the cover in the position as shown.

17. Press the motor hatch tightly against the motor housing. (L and R)

18. Install the propellers.

19. Install spinners.

20. Connect aileron and speed controller wires (please check the electronic control system wiring diagram on Page 9 as ref.)

21. Fix the wing on the fuselage with a plastic screw.

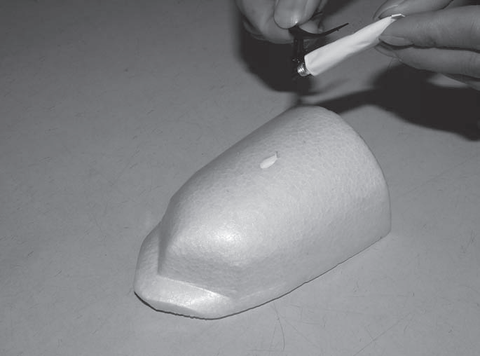

22. Apply the foam glue on the canopy.

23. Check that the stabilizer is central, level, and square to the fuselage.

24. Check that the fin is vertical and square to the tailplane and press firmly in place.
