Dynam SR22 V2 Trainer Assembly Manual

SR22-01 Fusalage

SR22-02 Wing

SR22-03 Canopy

SR22-04 Elevator

SR22-05 Clean Blister

SR22-07 Plastic Part Set

SR22-08 Landing Gear

SR22-09 Landing Wheel

SR22-10 Spinner

SR22-11 Push Rod

SR22-12 Decal

SR22-13 Plastic Tab

SR22-14 Screw Set

DY-1007 9g Servo

DY-6006 11.1V 2200mAh

DTM-T006 6C TX

DY-3003 Epoxy Glue

Skylord-40A ESC

DYR-2001 2.4G RX

DYAT-008 Servo Horn

DY-3001 Quick-controller

DYP-1016 9*6*3 Prop

BM2815-KV1100

DY-3007 Flap Hinges

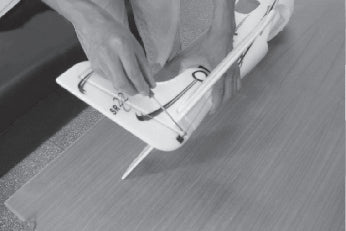

1. As shown, coated adhesive foam rubber in the horizontal tail.

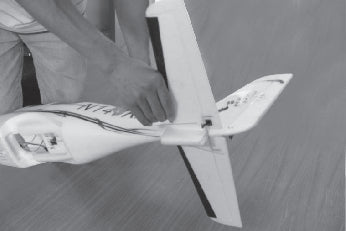

2. As shown, the horizontal tail position in the corresponding bonding fuselage.

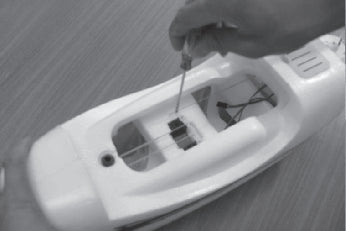

3. As shown, the rudder rod penetration quick connector tightens with a screwdriver.

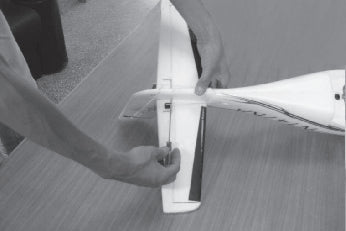

4. As shown, the elevator rod penetration quick connector tightens with a screwdriver.

5. The z-end of the rod will turn into plastic pieces shown in the figure.

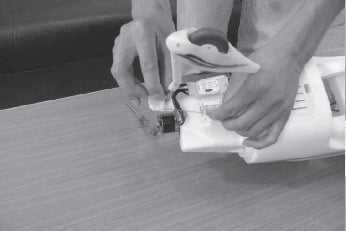

6. Fixed front wheel steering with PA2.5x6.

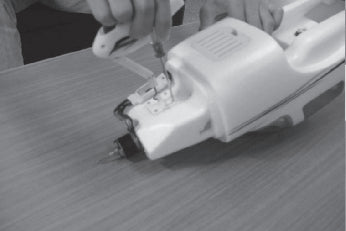

7. The front wheel steering rod into a quick connector fastened with a screwdriver.

8. As shown, tear up the surface layer of the double-sided adhesive.

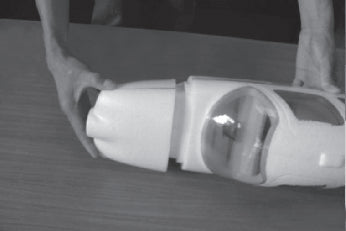

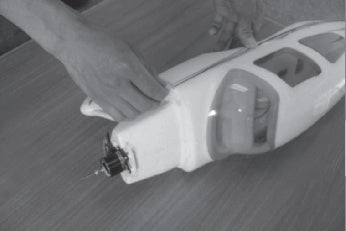

9. As shown, install a hood in the fuselage.

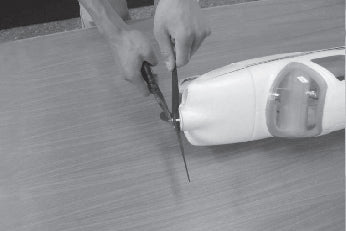

10. As shown in the installation of the 9060 Clover paddle.

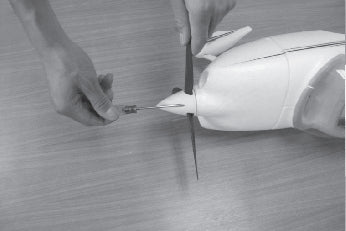

11. Phillips screwdriver fastening fairing.

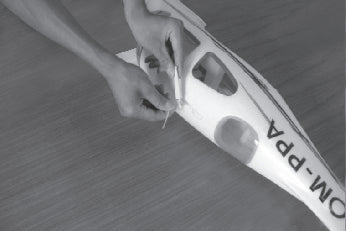

12. As shown, body antenna installation.

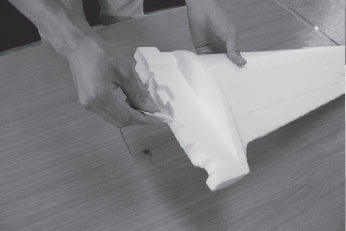

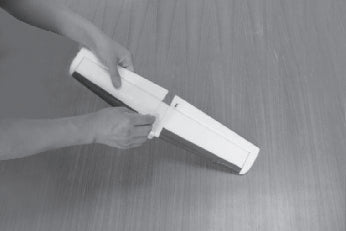

13. Bubble gum on the left and right wing.

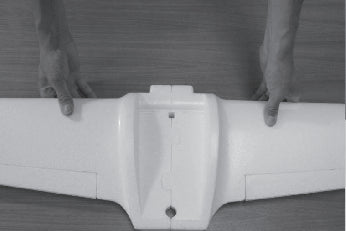

14. As shown, left and right-wing bonding.

15. As shown, installation of plastic parts in the position of the wing mark.

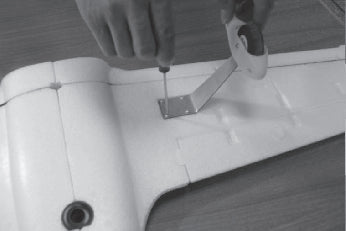

16. As shown, the landing gear screws around with PA2.5x6.

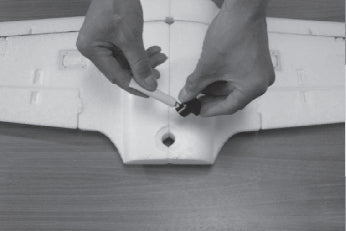

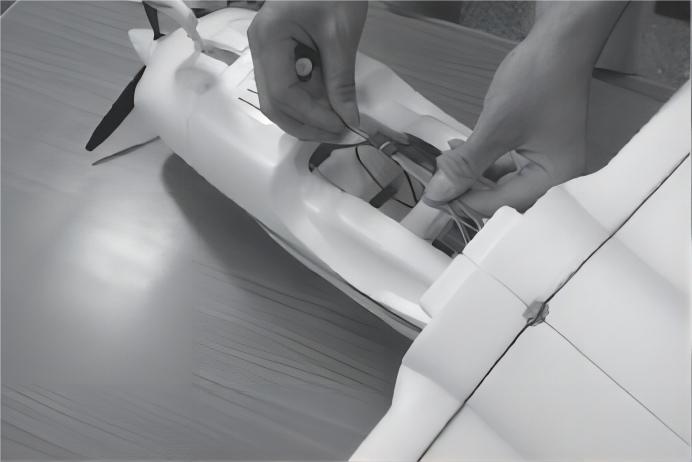

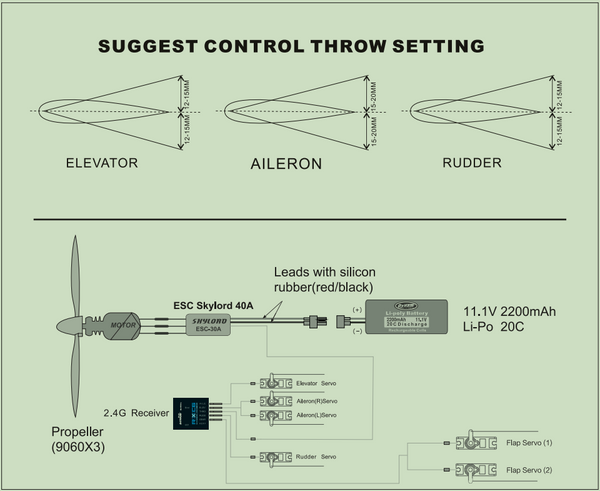

17. As shown, the aileron cable with Y-cable.

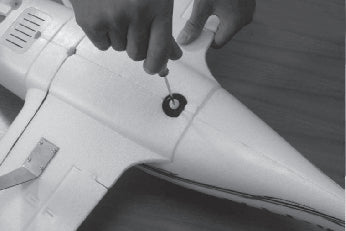

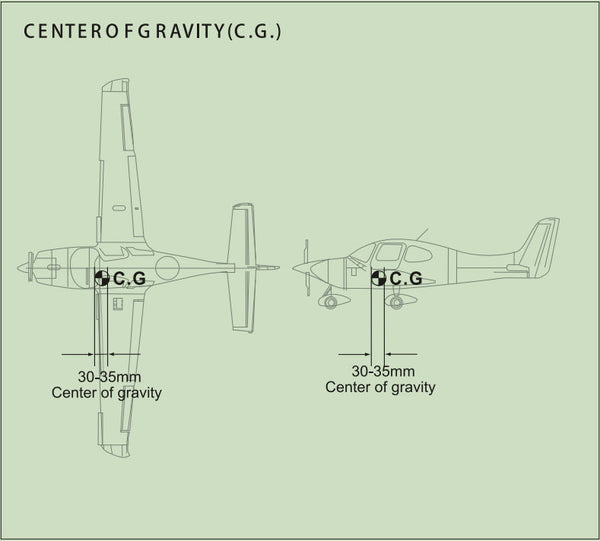

18. As shown, install of wing and fuselage tighten with a screwdriver.
